■ Product Overview

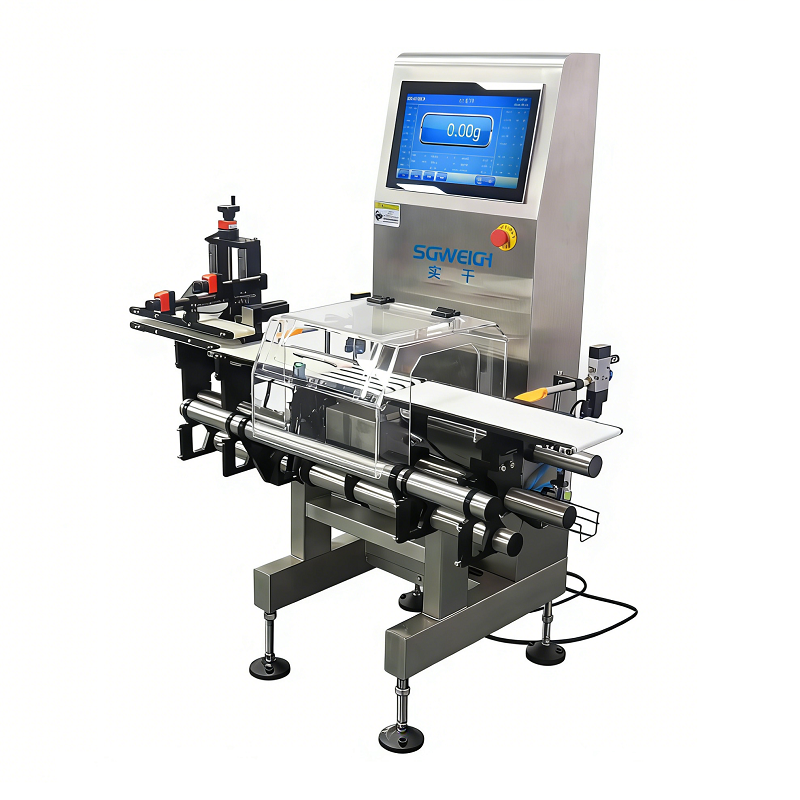

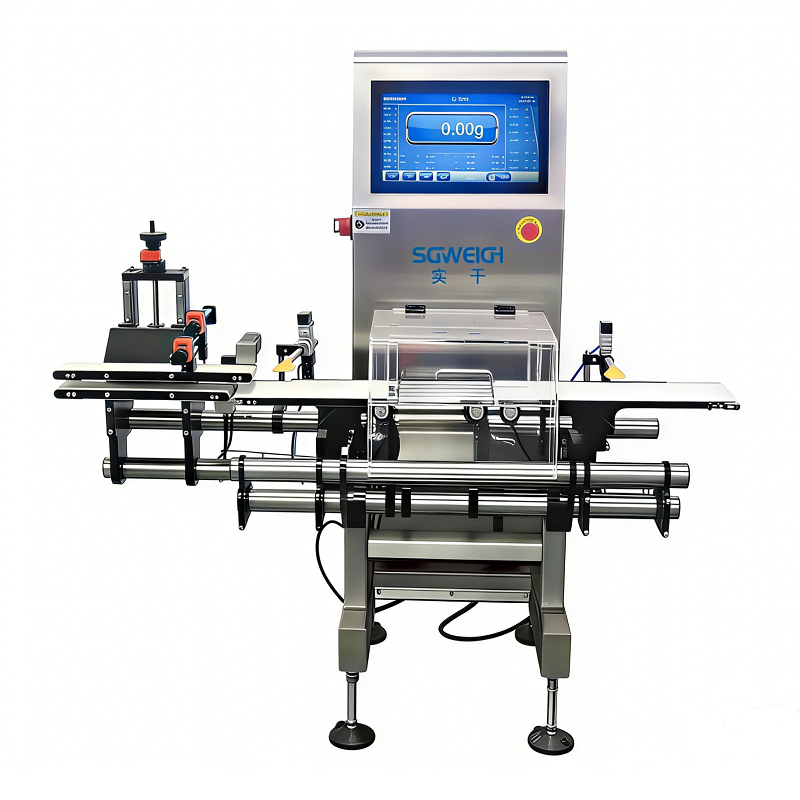

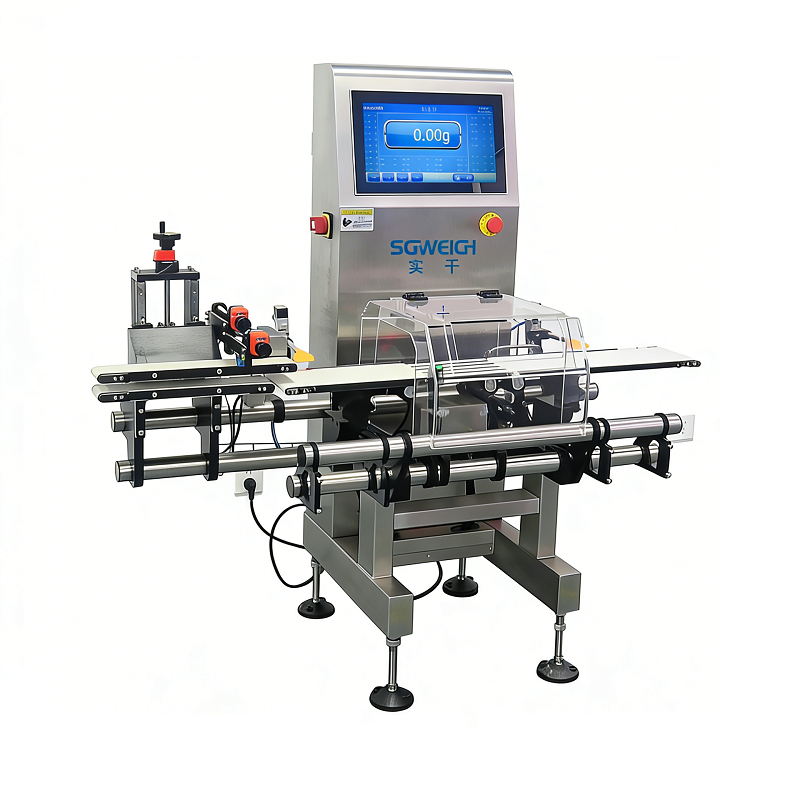

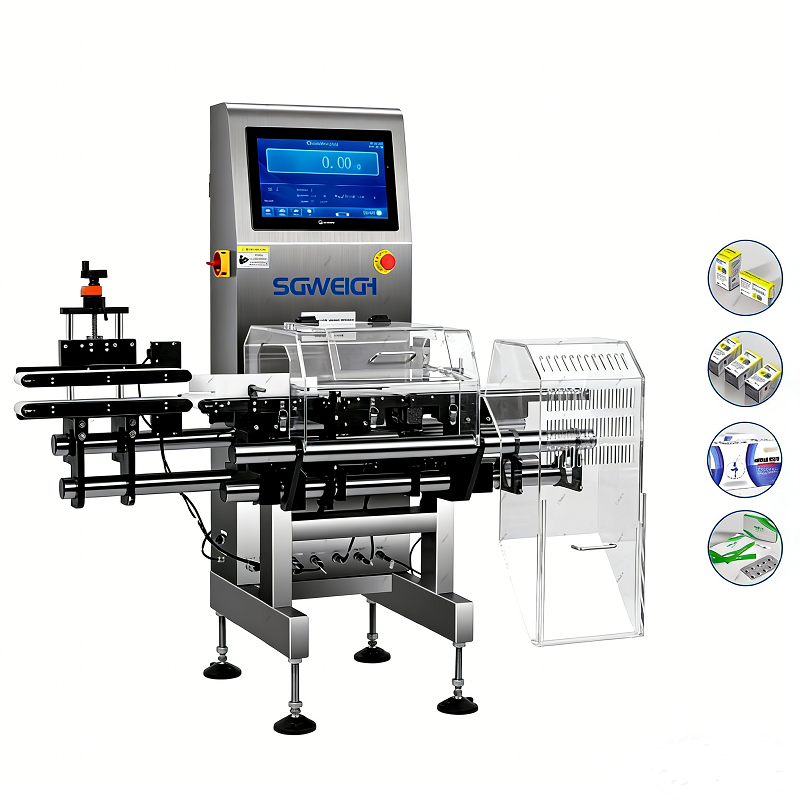

The Clamping Type Checkweigher for Boxed Products is a high-precision online checkweighing device specifically designed for boxed products (such as medicine boxes, cosmetic boxes, food packaging boxes, etc.). High-Speed Checkweigher’s core feature is the use of a double-sided clamping conveyor structure, which stably clamps the product during conveying, thereby achieving high-precision, offset-free dynamic weighing and detection.
■ Tech Specifications
| Type | SG-150HH |
| Weighing scope | 3-500g |
| Restriction of product | L:100 W:150 H:2-150(mm) |
| Accuracy | ±0.01g(Depends on products) |
| Division scale | 0.01g |
| Highest speed | 300pcs/min |
| Belt width | 150mm |
| Belt Speed | 0-110m/min |
| Power supply | AC220V±10%50HZ |
| Power | about 200W |
| Main material | SUS304 |
■ Main Features
1. High-Stability Weighing

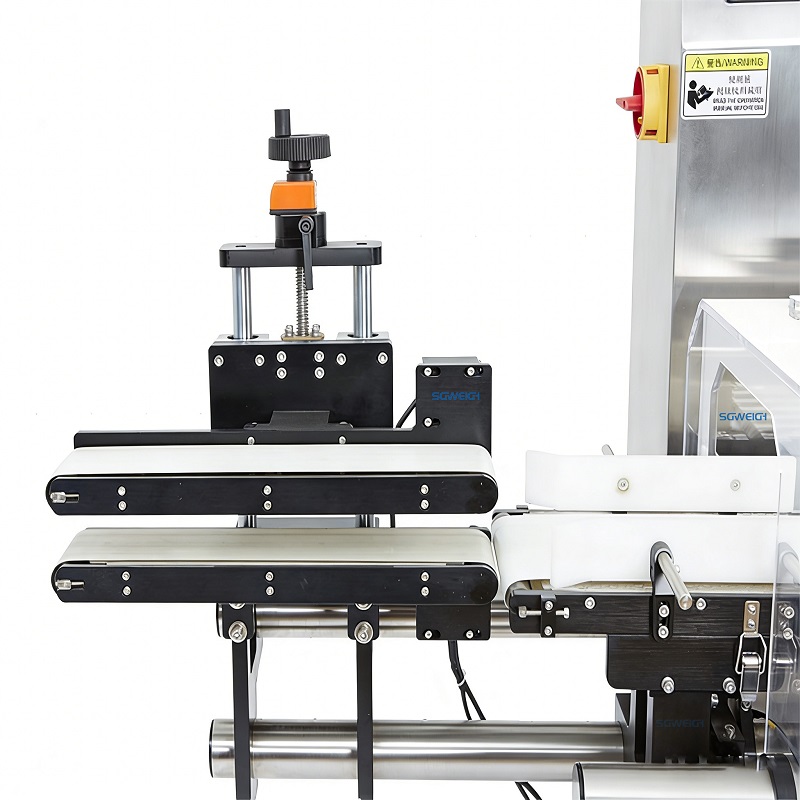

● Dual-sided clamping structure ensures consistent product positioning.
● Significantly reduces weighing errors.
2. High-Speed Online Inspection
● Supports continuous operation of high-speed packaging lines.
● Does not affect production cycle time.
3. Automatic Rejection System
● Multiple rejection methods available.
● Ensures 100% removal of defective products.
4. Data Statistics and Traceability
● Real-time display of weight data.
● Supports data storage, export, and traceability.
5. Multi-Specification Compatibility
● Supports quick switching between different sized boxed products.
● Parameter and formula storage function.
■ Application
This Clamping Type Checkweigher is particularly suitable for:
Lightweight/flat/easily offset boxed products
High-speed production lines
High-precision inspection scenarios (such as the pharmaceutical industry)
