■ Product Overview

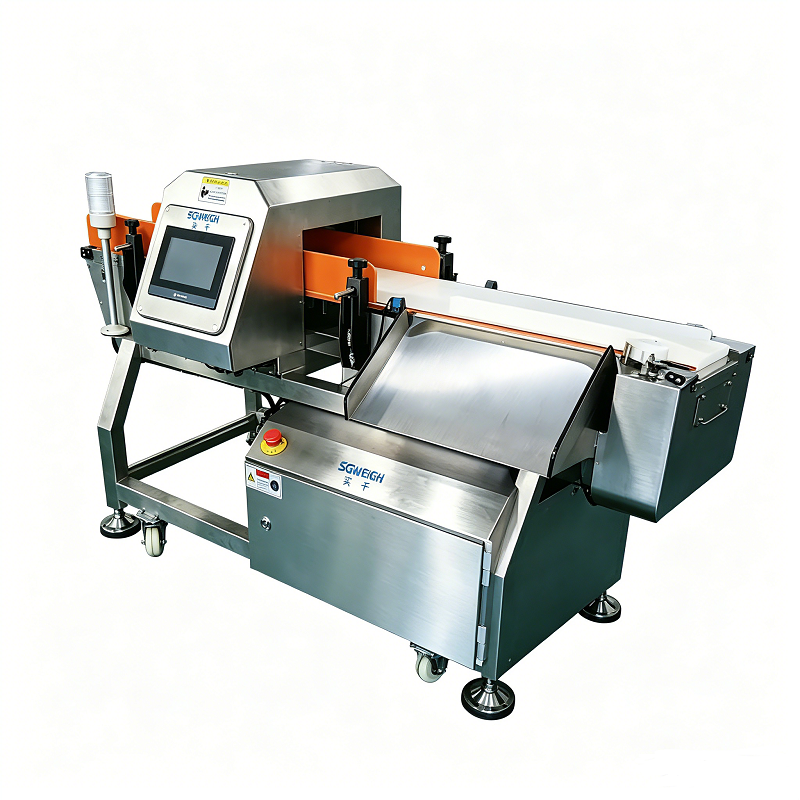

This Conveyor Belt Metal Detector is specifically designed for the in-line inspection of packaged food products within food processing and packaging lines. Utilizing advanced electromagnetic induction and digital signal processing technologies, the device is capable of precisely detecting ferromagnetic, non-ferromagnetic, and stainless steel contaminants embedded within sealed food packages. The machine body is constructed from food-grade stainless steel and features a hygienic, water-resistant design.
By delivering stable and reliable in-line detection coupled with automatic rejection capabilities, the system effectively eliminates potential food safety hazards, thereby robustly safeguarding brand reputation.
■ Tech Specifications
| Type | SG-M400 |
| Detection sensitivity: in empty state | H-100mm: Fe≥Φ0.8mm, Non-Fe≥Φ1.5mm, SUS≥Φ1.5mm H-120mm: Fe≥Φ0.8mm, Non-Fe≥Φ1.5mm, SUS≥Φ2.0mm H-150mm: Fe≥Φ1.0mm, Non-Fe≥Φ1.5mm, SUS≥Φ2.0mm H-200mm: Fe≥Φ1.2mm, Non-Fe≥Φ2.0mm, SUS≥Φ2.5mm |
| Detecting width | 150-1000mm customized according to requirements |
| Detecting height | 80-500mm (or custom-made) |
| Detecting adjustment | Intelligent adjustable |
| Maximum speed of conveyor belt | 25m/min |
| Conveyor belt material | food grade PU belt |
| Protection class | IP65 |
| Display and operation mode | LED fast key input/Touchscreen |
| Power requirements | AC220V 50HZ |
■ Main Features
1.High-sensitivity detection of all metal impurities in dry, wet and metal film packaged food.
2.Intelligent auto-calibration adapts to product effect, reducing false alarms effectively.
3.Integrated conveyor structure, seamless docking with existing food production lines.
4.Sound-light alarm + automatic rejection/line stop for contaminated products.
5.Food-grade hygienic design, easy cleaning, dustproof and waterproof for workshop environment.
6.Touch screen operation with data recording, convenient for quality traceability and compliance audit.
■ Application
■ Company
■ Customers
■ Exhibitions
■ Packaging & Delivery
● Our machines undergo comprehensive testing and commissioning before shipment to ensure stable and reliable performance.
● Equipment is packaged in thickened wooden crates with shock and moisture-proof interiors to effectively prevent damage during transportation.
● We partner with several professional international logistics companies and support a variety of shipping methods, including sea, air, and land transport.
● Ensure the equipment arrives safely and on time at your facility.
