■ Product Brief

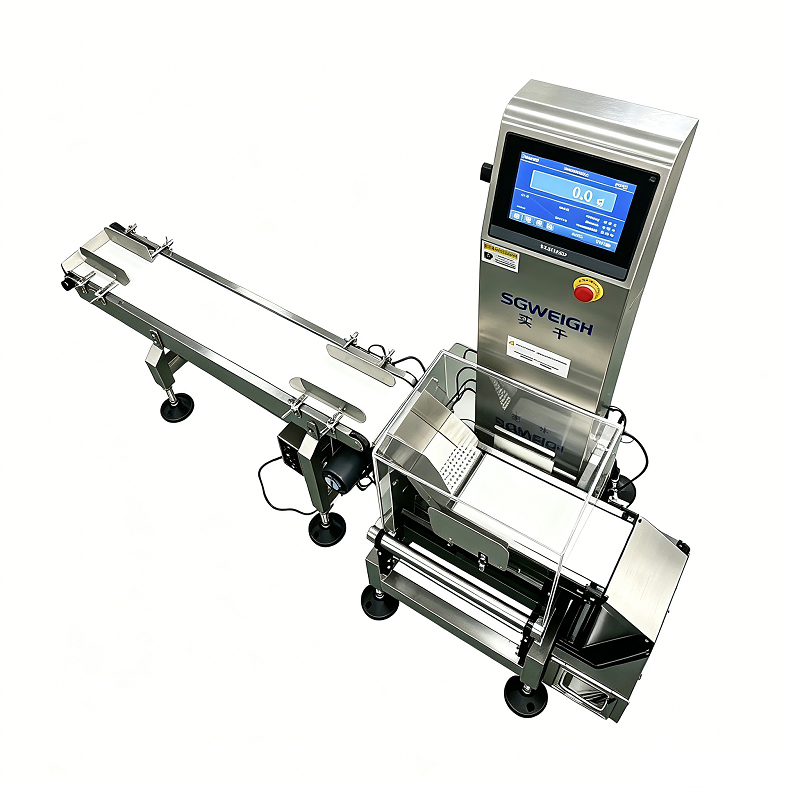

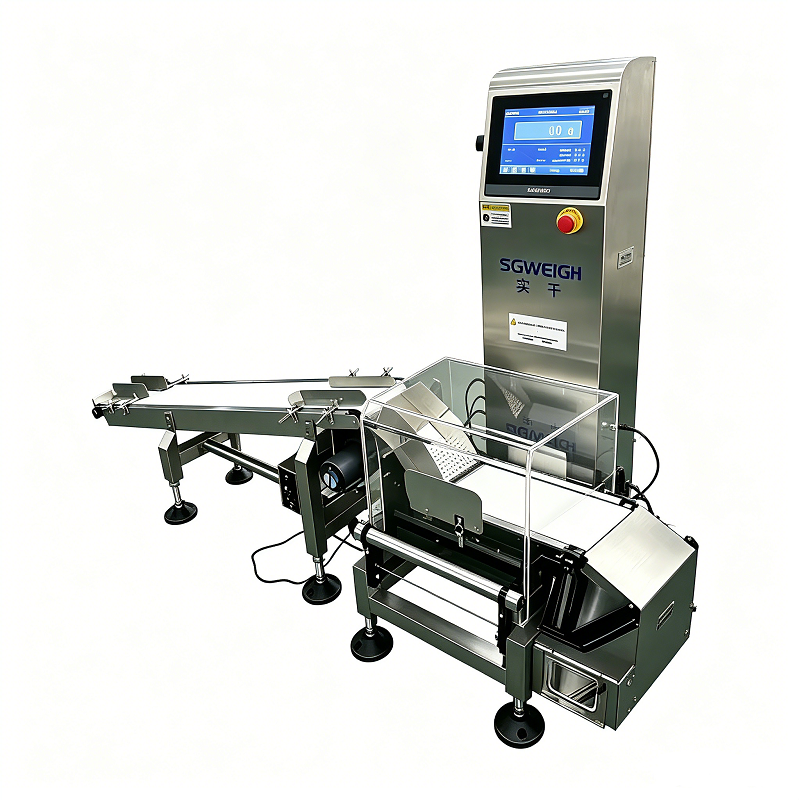

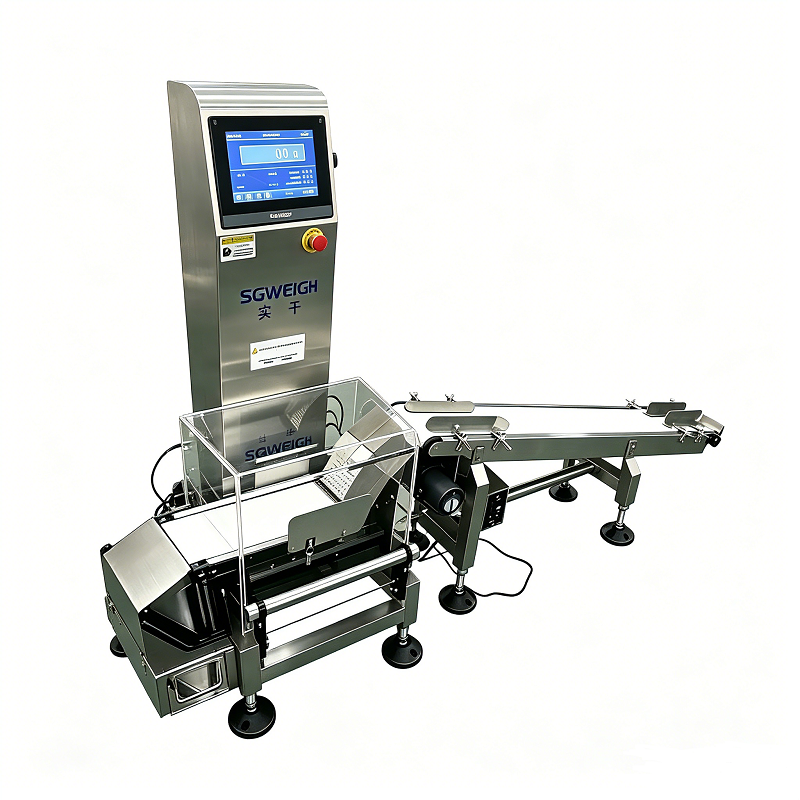

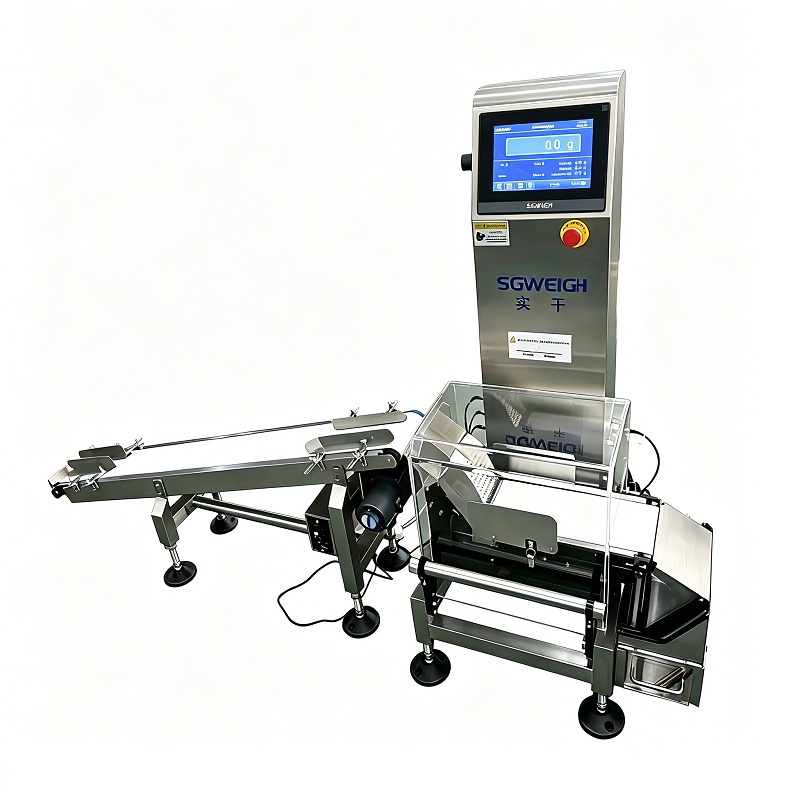

An Inclined Conveyor Checkweigher is an automated dynamic weighing system designed for products that require height transfer, elevation feeding, or space-saving conveying during the production process. It combines an inclined conveyor structure with high-precision weight inspection technology to automatically detect underweight, overweight, or missing products in real time.
Widely used in the food, pharmaceutical, cosmetic, daily chemical, and packaging industries, the inclined conveyor checkweigher helps manufacturers improve production efficiency, reduce giveaway, and comply with strict quality control standards.
■ Technical Data
| Model: | SG-1X |
| Weighing range | 1 to 50g |
| Graduation value | 0.01g |
| Throughput | 40-60 products/min (per lane) |
| Accuracy (3σ) | +/- 0.01g(Depends on products) |
| Display | 8.5-inch |
| Operation method | Touch panel |
| Preset memory | Up to 100 |
| Exterior | Stainless steel (SUS304/316) |
| Data | output USB2.0, 10BASE-T, 100BASE-TX Ethernet |
■ Product Highlights
1.High-Precision Dynamic Weighing
Advanced load cell technology ensures stable and accurate online weight inspection even at high conveyor speeds.
2.Inclined Conveyor Design
The inclined structure enables smooth product elevation and transfer, making it suitable for limited factory space or integrated production layouts.
3.Automatic Reject System
Automatically removes overweight, underweight, or defective products to ensure product consistency and quality compliance.
4.Stainless Steel Construction
Food-grade SUS304 or SUS316 stainless steel provides excellent corrosion resistance and supports hygienic production environments.
5.Intelligent Touchscreen Control
User-friendly HMI supports multiple product recipes, real-time monitoring, production statistics, and easy parameter adjustment.
6.Seamless Production Line Integration
Can be connected with packaging machines, labeling machines, metal detectors, filling systems, and cartoning machines.
7.Stable Operation for Various Products
Suitable for bags, pouches, boxes, bottles, cans, sachets, cartons, and other packaged products.
■ Industry Applications
■ Company Profile
■ Cooperative Clients
■ Exhibition
■ Package & Logistics
Inner use the plastic wrapping ,out package will use stronger wooden cases.
Our standard package process:
1) Dust & Cleaning
2) Lubricate Drive Parts
3) Divide Machine Into Modules
4) Wrap Modules With Plastic Film
5) Packing Modules into Plywood Cases
6) Mark Shipping Mark In The Cases
If any special requirements, we will pack it as requested.
