|| Product Introduction

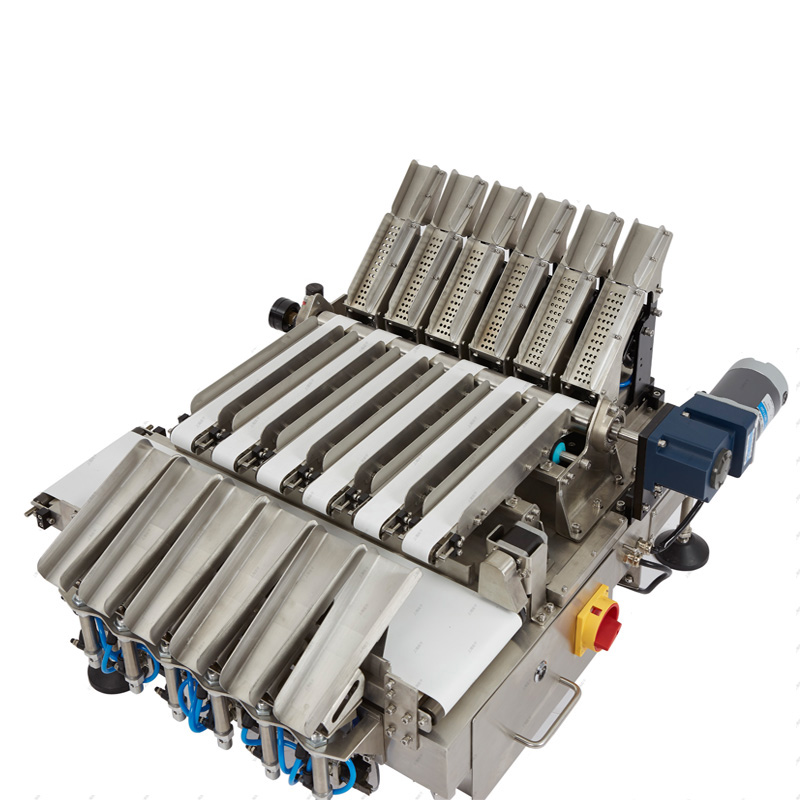

High Precision 0.01g Multi-lane Checkweigher is a high-speed weighing system that is designed to handle multiple lanes of product simultaneously.Multi-lane Checkweigher for Packaged Stick Products is used in industries where high production rates are required, such as the food, pharmaceutical, and consumer goods industries.
Machine weighing control on packaged products features units with 2-12 lanes designed to inspect packaged stick products of various sizes and formats, including tubes, pumps, pens, jars, bottles, and foil bags.
|| Tech Specifications
Model:SG-6X
Weighing Range:1-50g
Minimum Scale:0.01g
Sorting Speed:70pcs/min (one lane)
Conveying Speed:20-100m/min
Operation Method:Touch operation
Conveying Direction:Can be placed according to the actual situation on site
Elimination Method:Lifting Rejection
Belt Height From The Ground:450±50mm (can be customized according to customer requirements)
Machine Structure:Stainless steel (SUS304)
Power Supply:220V 50-60HZ
Power:About400W
Windshield:Thick acrylic (to avoid airflow interference)
|| Main Features
1. Large-size color LCD touch screen interface, easy to operate and intuitive display.
2. Support multiple languages: Chinese and English by default.
3. Can store 100 kinds of product test data, convenient for users.
4. USB data storage interface, report data can be transferred to PC for analysis and printing.
5. Parameter setting three-level password protection, only management personnel can operate.
6. Automatic zero-point tracking system to ensure reliable test data.
7. Data external communication interface, can be connected to other equipment on the production line (such as: multi-lane packaging machine,metal detector) (customized).
|| Application
|| Our Customers
|| Our Exhibitions
|| Package & Shipping
1.Before packaged, the machines will be tested strictly to guarantee the stability and high accuracy.
2.After tested, the machines will be wrapped with plastic sheet and carefully packed in wooden cases.
Packing Detail:
1.Each Machine with plastic film package first, then placed in a wooden case, wooden case with a foam filling.
2.We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers and ship them abroad.
