■ Product Introduction

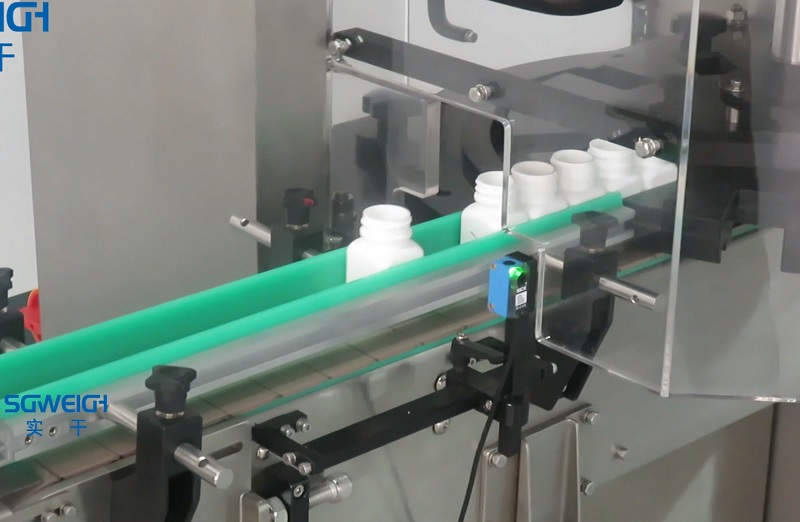

Turntable Small Bottle Checkweigher is a type of industrial scale used to automatically check the weight of products as they move along a production line.High Speed Conveyor Weight Checker ensures that each product meets the required weight specifications, helping manufacturers maintain quality control.This helps in preventing underfilled or overfilled products from reaching consumers, thus ensuring product consistency and compliance with regulations.
2-300g Thin Bottle Online Checkweigher
■ Tech Specifications
Model: SG-Z2 (dual channel)
Weighing range: 5-300g
Minimum scale: 0.01g
Sorting accuracy: ±0.02 grams (depending on the product)
Sorting speed: maximum 50 pieces/minute (single channel)
Conveying speed:0-50m/min
Operation mode: touch operation
Conveying direction: Facing the touch screen from left to right
Rejection method: air blowing removal/push plate removal
Belt height from the ground: 750±50mm (can be customized according to customer requirements)
Machine structure: stainless steel (SUS304)
Power supply: 220V 50-60HZ
Power: about 1500W
■ Main Features
1. Large screen display, clear viewing, easy operation.
2. Default Chinese and English operation interface.
3. Photoelectric positioning, the turntable accurately sends the product to the weighing sensor.
4. The chain conveyor is strong and durable.
5. Three-level operation authority management, special self-set password.
6. 100 product formulas are preset and stored.
7. Unqualified products are automatically rejected.
8. Multi-channel passing products to improve production efficiency (customizable number of channels).
■ Application
Checkweigher for small and medium sized cylindrical packages like bottles, jars and cans.
■ Customers
■ Exhibitions
■ Package & Shipping
Inner use the plastic wrapping ,out package will use stronger wooden cases.
Our standard package process:
1) Dust & Cleaning
2) Lubricate Drive Parts
3) Divide Machine Into Modules
4) Wrap Modules With Plastic Film
5) Packing Modules into Plywood Cases
6) Mark Shipping Mark In The Cases
If any special requirements, we will pack it as requested.
