Product Introduction
The High Speed Checkweigher With Conveyor series is mainly used for quality control of various packaging boxes.Medicine Packaging Boxes Checkweigher can be embedded in various production/transportation lines and conveyor systems to weigh products one by one and automatically reject unqualified products.

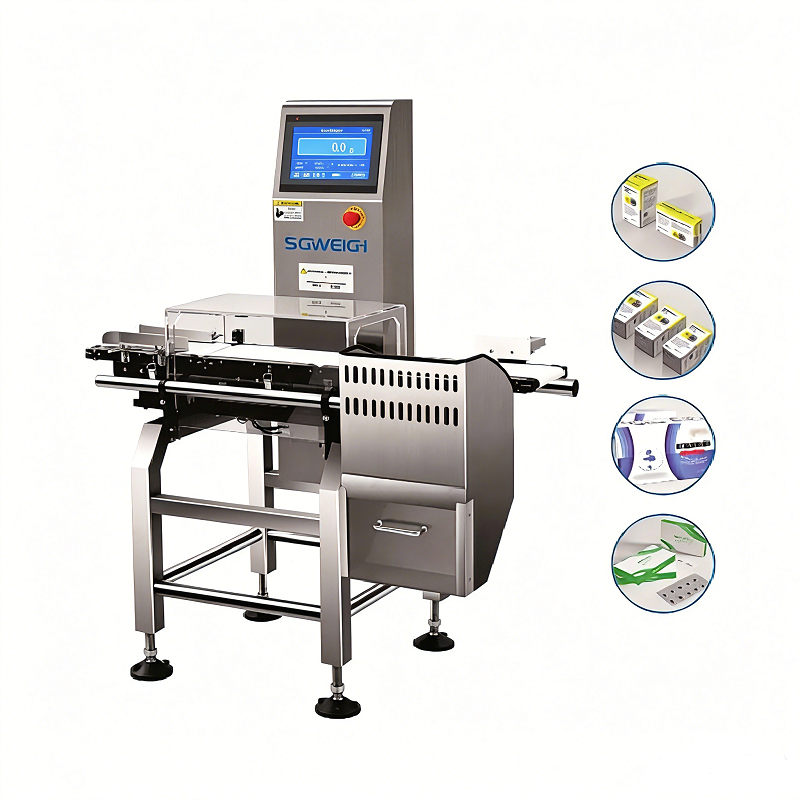

Boxes Checkweigher With Conveyor
Tech Specifications
Model:SG-150
Weighing range:5-500g
Minimum scale:0.1g
Checking speed :Max 120pcs/Min
Belt speed:20-65m/min
Box size limit:Length:200mm Width:150mm Height:3-200mm
Operation Way:Touch operation
Conveying direction:Facing the touch screen from left to right
Rejection method:Push Rejection
Belt height from the ground:750±50mm（can be customized）
Machine material:Stainless steel（SUS304）
Power supply:220V50 60HZ
Power:About300W
Feeding conveyor size:316mmX150mm
Weighing conveyor size:316mmX150mm
Rejection conveyor size:510mmX150mm
Weight:About120KG
Windshield:8mm Thick acrylic (to avoid airflow interference)
Feet M20 stainless steel with shock-absorbing rubber pad
External air source:0.2-0.6Mpa Air pressure port:Φ8mm
Main Features
1. Standard stainless steel conveyor structure, easy to clean and simple to maintain.
2. Three-level operation authority management, support self-set password.
3. 100 product formula preset storage.
4. Touch screen human-machine dialogue.
5. The machine can be customized according to needs.
6. The production data of the checkweigher can be easily exported via USB or Ethernet.
\
Application
Our Company
Our Customers
Our Exhibitions
Package & Shipping
Inner use the plastic wrapping ,out package will use stronger wooden cases.
Our standard package process:
1) Dust & Cleaning
2) Lubricate Drive Parts
3) Divide Machine Into Modules
4) Wrap Modules With Plastic Film
5) Packing Modules into Plywood Cases
6) Mark Shipping Mark In The Cases
If any special requirements, we will pack it as requested.
FAQ
Q1. Are you a manufacturer or trader?
A: We are a manufacturer and we are located in Shanghai,China. We have our own design team for product design.
Q2. What are your company’s requirements for payment terms?
A: TT,L/C,Western Union,Money Gram,Paypal,International Credit Card.,
Q3: Can you explain the whole transaction process?
1. Understand the specific needs of customers and determine the machine details.
2. Sign the contract.
3. Pay the deposit.
4. The factory arranges production.
5. Test and inspect the machine before shipment.
6. Check by customers through online or on-site testing.
7. Shipment and transportation, balance payment.
Q4. What kind of shipping method can you provide?
A: By sea, by air and by international express.We will send the photo and video of machine to customer to check the machine running situation before delivery.
Q5. Do you accept customer logo and customization?
A: We accept all kinds of customization and logo for our customers for all our products.
Q6. How about the packing for product? Is it easy damaged during transportation?
A: No.We takes of wooden case and it is very safe.
Tag:High Speed Checkweigher,Conveyor Check Weigher,Weighing Machine
