|| Product Introduction

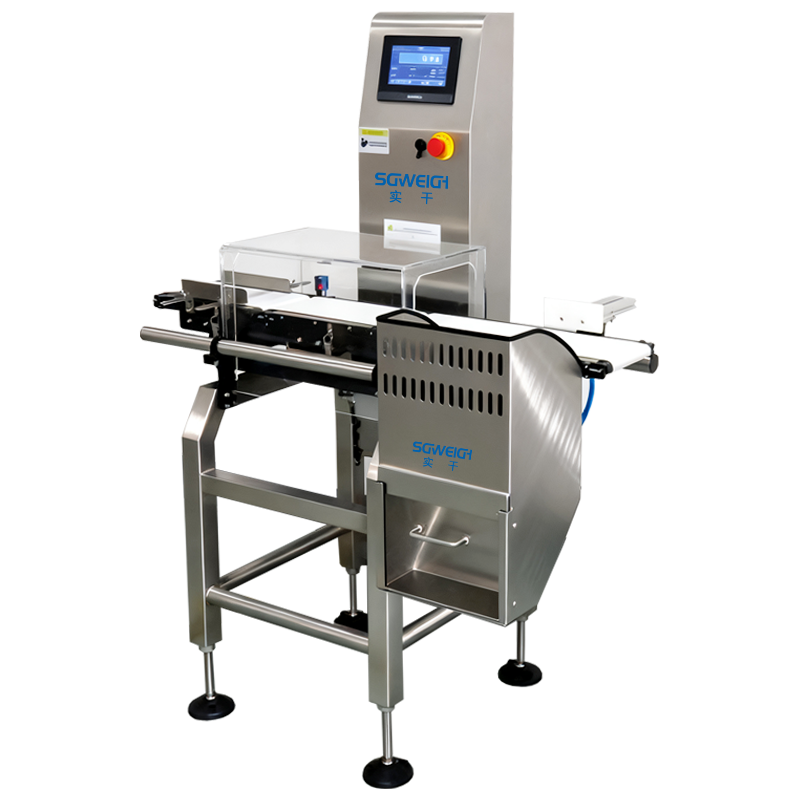

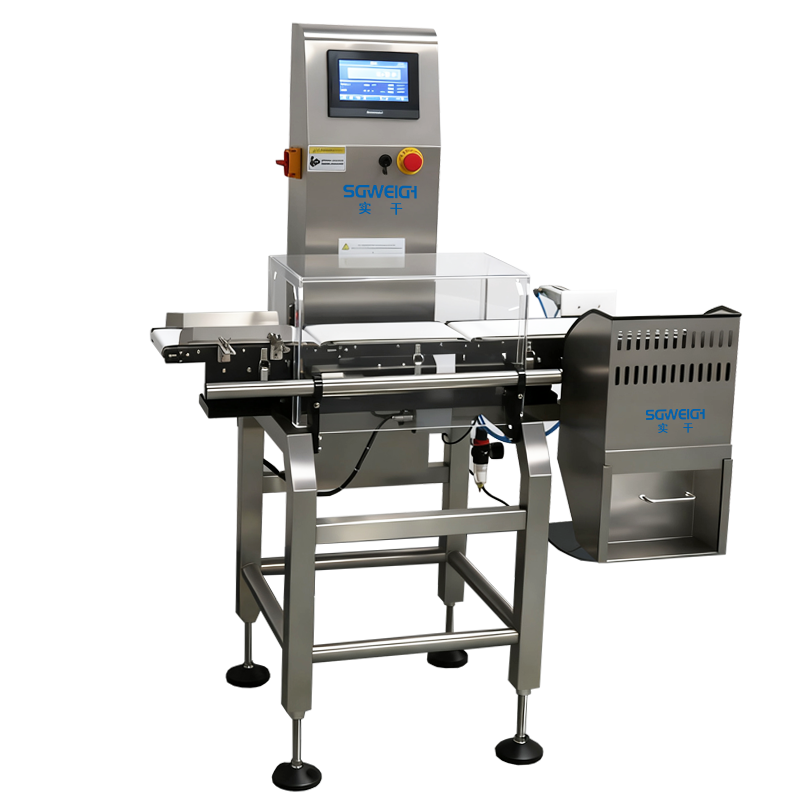

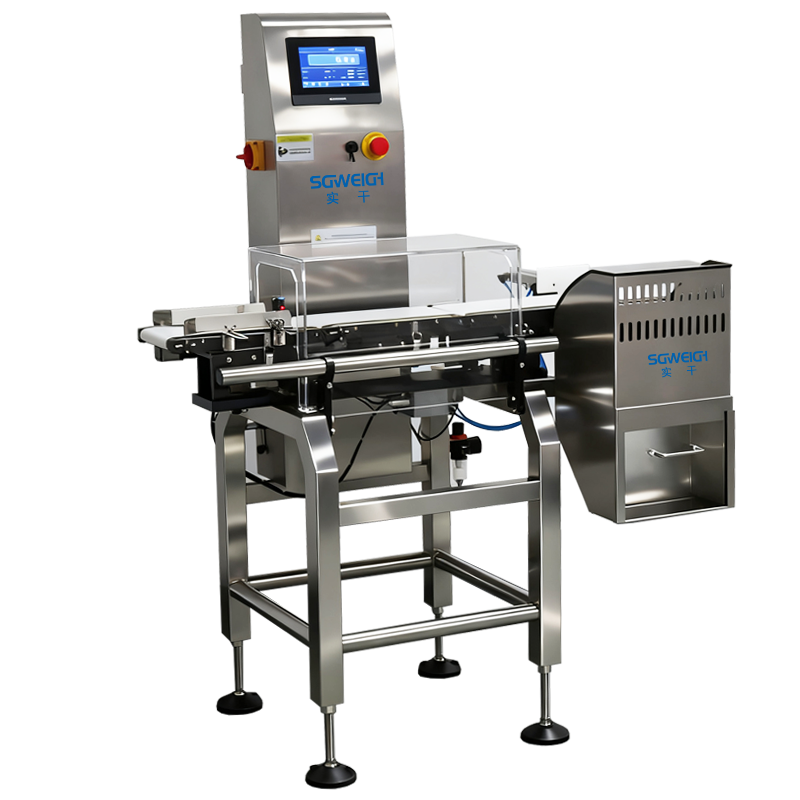

Small Box Checkweighers are specifically designed for inspecting lightweight packages.Checkweigher for Cosmetic Pharma can identify missing instructions, desiccants, individual capsules/tablets, or minor filling discrepancies. Small box checkweighers are commonly used in the pharmaceutical, cosmetics, light industrial, and fine food industries.
|| Tech Specifications
Model:SG-150
Weighing range:5-500g
Minimum scale:0.1g
Checking speed :Max 120pcs/Min
Belt speed:0-65m/min
Box size limit:Length:200mm Width:150mm Height:3-200mm
Operation Way:Touch operation
Conveying direction:Facing the touch screen from left to right
Rejection method:Push Rejection
Belt height from the ground:750±50mm（can be customized）
Machine material:Stainless steel（SUS304）
Power supply:220V50/60HZ
Power:About300W
Windshield:8mm Thick acrylic (to avoid airflow interference)
Feet M20 stainless steel with shock-absorbing rubber pad
|| Main Features
1. High-Precision Detection: Equipped with a high-sensitivity sensor for precise weighing.
2. High-Speed Defect Detection: Accurately identifies and rejects defective products on high-speed production lines that lack instructions, desiccant, or have insufficient quantity/size, or do not meet net content standards.
3. Stable Anti-Tipping Design: Narrow belts and shock-absorbing structures optimized for lightweight small boxes ensure product stability during high-speed transit, preventing bottles from tipping over or jamming.
4. Non-Destructive Automatic Rejection: Equipped with air-blowing or push-rod rejection mechanisms to instantly remove defective products from the production line without damaging fragile packaging.
5. Data Traceability and Compliance: Built-in statistical reporting function supports data export and integration with MES/ERP systems, complying with pharmaceutical and food safety regulatory requirements.
|| Application
Pharmaceuticals: Check if any instructions are missing from medicine boxes.
Cosmetics: Check if cream and perfume boxes are fully filled.
Food: Test the net content of chocolate, bar coffee, and boxed snacks.
|| Our Customers
|| Our Exhibitions
|| Packaging & Delivery
Our machines is fully tested and calibrated before delivery.
It is packed in a strong wooden case with internal shockproof protection.
Various shipping options are available — by sea, air, or land — ensuring safe and on-time delivery by professional logistics partners.
