|| Product Introduction

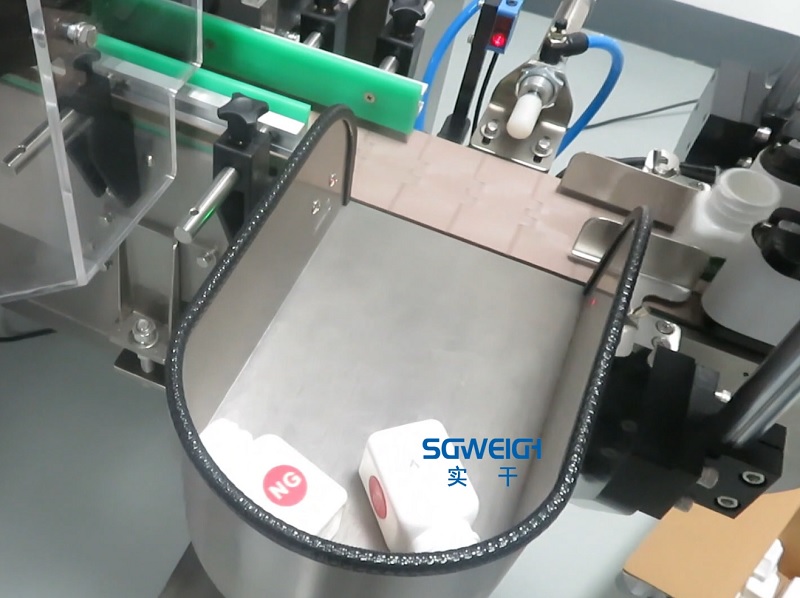

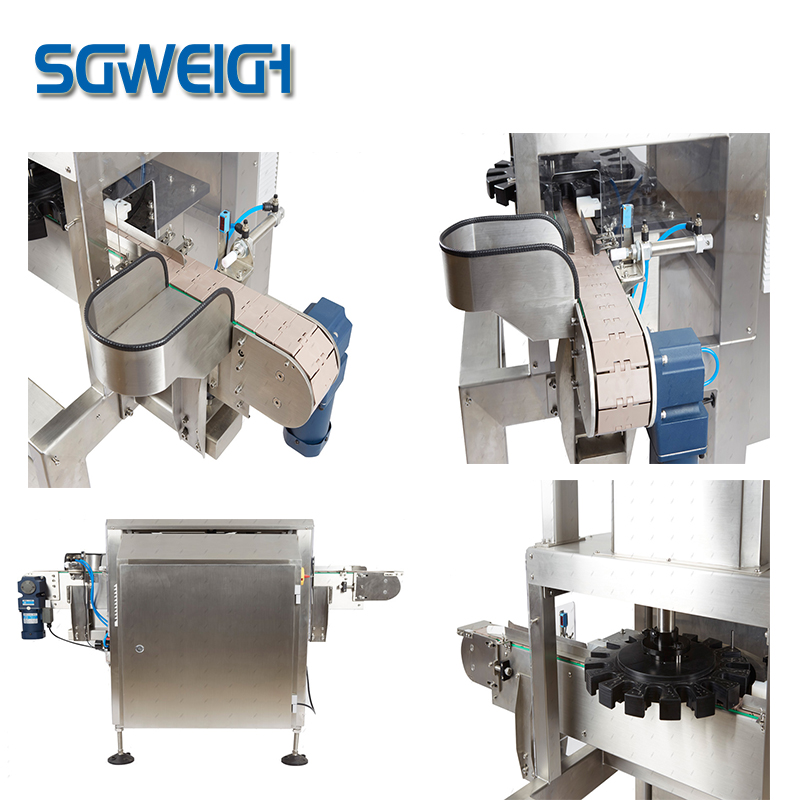

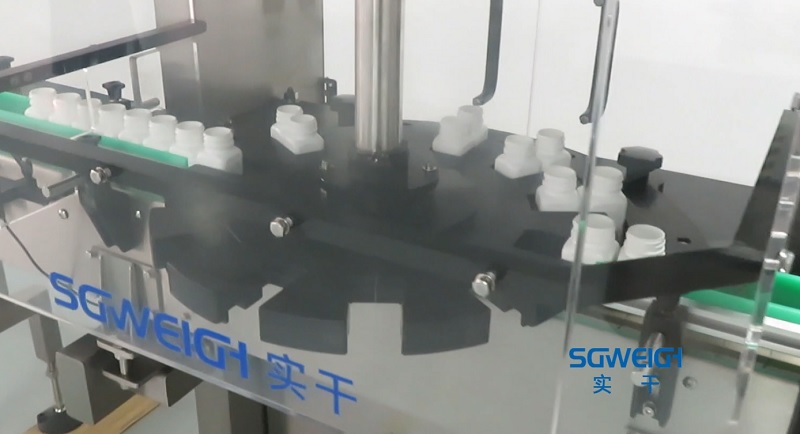

Rotary Checkweigher Machines are designed to verify the weights of containers or aerosol cans at speeds up to 180 containers per minute.High Speed Small Bottle Containers Rotary Checkweigher was designed to check the weights of aerosol cans after filling.
|| Tech Specifications
Type:SG-Z Checkweigher
Weighing scope:2-300g
Restrictions of product:Ф10-100 Н:20-200(mm)
Accuracy:±0.01g (Depends on products)
Division scale:0.01g
Belt Speed:0-50m/min
Highest speed:60pcs/min,120pcs/min,180pcs/min(Optional)
Chain plate width:100mm
Weight of machine:about 260Kg
Powder supply ：AC220V 50HZ
Power:about 400W
Main material:SUS304
|| Main Features
1. Large color LCD touch screen interface.
2. Chinese and English are the default.
3. With photoelectric automatic detection of empty packages, the conveyor belt speed is adjustable.
4. Three-level password protection for parameter settings, only management personnel can operate.
5. Product weighing data can be exported via USB.
6. Power-off protection function, the parameters remain unchanged in the event of an accidental power failure.
7. 100 product parameters can be stored for easy user switching.
8. Simple mechanical structure, buckle conveyor belt, easy to disassemble, clean and maintain.
9. Automatic dynamic compensation value, dynamic zero point tracking.
10. The statistical distribution of the results is displayed in the curve/bar chart.
|| Application
|| Our Customers
|| Our Exhibitions
|| Package & Shipping
Inner use the plastic wrapping ,out package will use stronger wooden cases.
Our standard package process:
1) Dust & Cleaning
2) Lubricate Drive Parts
3) Divide Machine Into Modules
4) Wrap Modules With Plastic Film
5) Packing Modules into Plywood Cases
6) Mark Shipping Mark In The Cases
If any special requirements, we will pack it as requested.
