|| Product Introduction

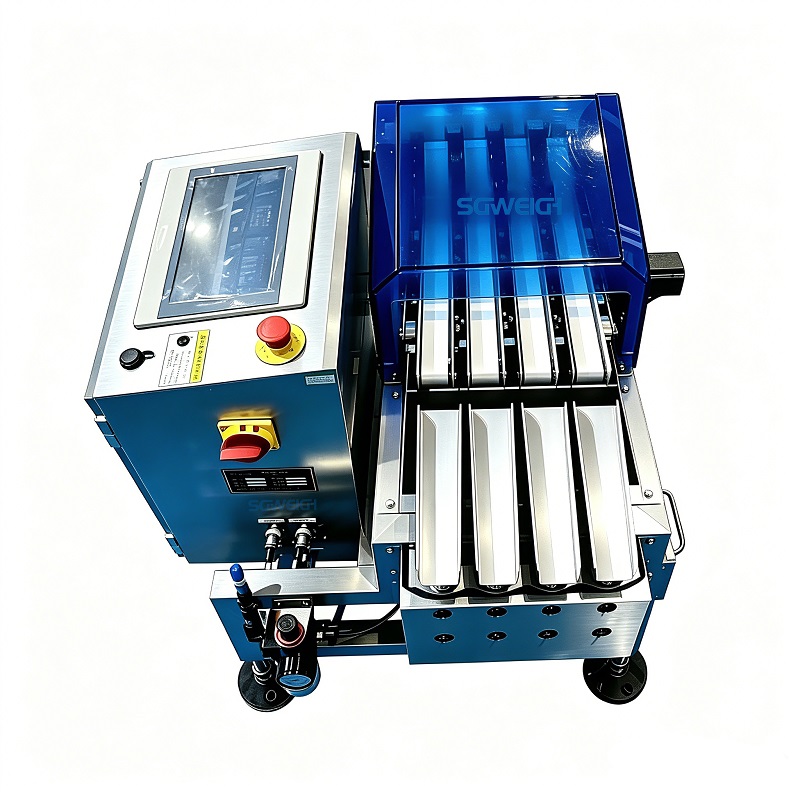

The Inclined Conveyor Multi-Row Checkweigher utilizes an inclined, multi-lane conveyor layout, enabling high-speed automatic checkweighing systems to simultaneously weigh multiple products (rows).
This design aims to increase checkweighing speed several times without significantly increasing the equipment footprint, meeting the demands of modern, ultra-high-speed production lines.
Connect with packaging machines and provide customized services according to the production line conditions.
|| Tech Specifications
Type:SG-10X
Weighing scope:1-50g
Restrictions of product:L:180 W:40 H:2-20(mm)
Accuracy:±0.01g (Depends on products)
Division scale:0.01g
Belt width:30mm
Highest speed:70pcs/min(one lane)(Depends on products)
Weight of machine:about 200Kg
Powder supply：AC220V 50HZ
Power:about 300W
Main material:SUS304(Stainless Steel)
(the number of channels can be customized)
|| Main Features
1. Extremely high inspection speed: This is its core advantage. Through parallel processing, its speed is typically 10 times that of a single-row checkweigher, reaching over 600 pieces per minute.
2. Space-saving: Compared to multiple single-row checkweighers installed side by side, a multi-row checkweigher occupies a smaller footprint while achieving the same or even higher production capacity.
3. High precision and stability: The tilted design helps stabilize products, and combined with high-performance sensors and algorithms, it maintains excellent weighing accuracy even at high speeds.
4. Powerful data processing capabilities: The need to process massive amounts of parallel weight signals places extremely high demands on the controller and software.
|| Application
|| Our Customers
|| Our Exhibitions
|| Package & Shipping
Inner use the plastic wrapping ,out package will use stronger wooden cases.
Our standard package process:
1) Dust & Cleaning
2) Lubricate Drive Parts
3) Divide Machine Into Modules
4) Wrap Modules With Plastic Film
5) Packing Modules into Plywood Cases
6) Mark Shipping Mark In The Cases
If any special requirements, we will pack it as requested.
