■ Product Introduction

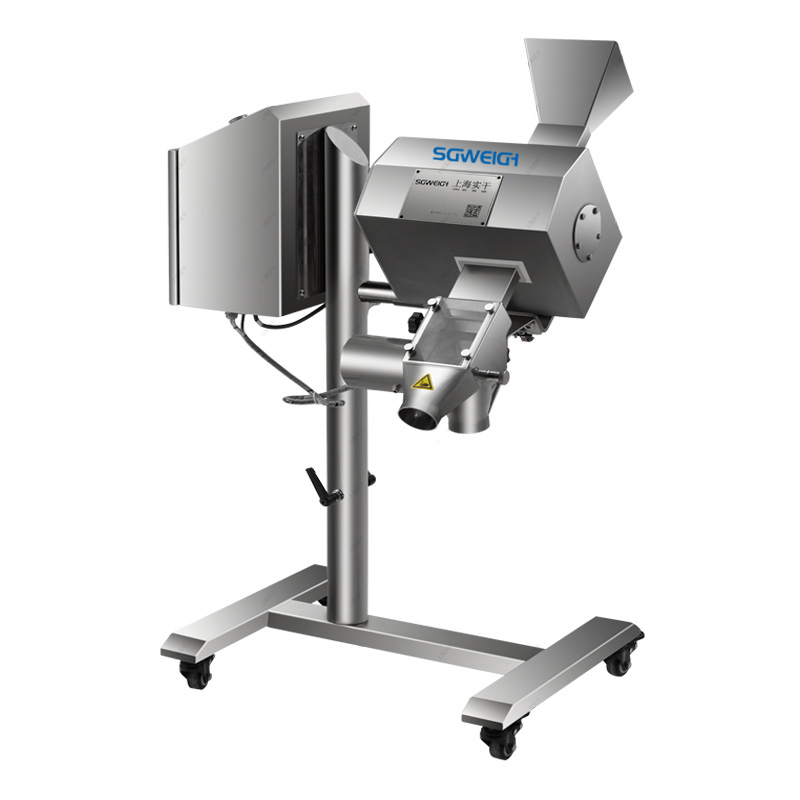

Best Pharmaceutical Metal Detector is suitable for detecting and removing magnetic and non-magnetic metal foreign bodies in tablets and capsules. During operation, the metal detector can detect 100% of the foreign bodies, thereby reducing material loss and not affecting normal production.Tablets and Capsules Metal Detector can be connected to tablet presses and capsule filling machines.
■ Tech Specifications
Type:SG-M50
Inlet height: 770-930mm Port size: 76mm
Outlet Height: 770-860mm Port size: 51mm
Effective passing size: W70*H20mm
Maximum production capacity: 500,000 pcs/hour
Sensitivity(adjustable or not):Yes
Detection sensitivity: Fe: 0.4mm, stainless steel: 0.6mm
Machine weight: 75kg
Removal method: flip culling
Working voltage: 220V/110V, 50/60HZ
■ Main Features
1. High-grade stainless steel construction for low maintenance and high performance.
2. Fast and efficient detection and rejection with minimal waste.
3. Can be installed at critical locations, fully compliant with FDA regulations.
4. Easy assembly and disassembly of product-contact components.
5. Anti-static food-grade material chutes and piping.
6. Extremely responsive to contaminated products, enabling rapid detection and rejection.
■ Application
■ Customers
■ Exhibitions
■ Package & Shipping
Inner use the plastic wrapping ,out package will use stronger wooden cases.
Our standard package process:
1) Dust & Cleaning
2) Lubricate Drive Parts
3) Divide Machine Into Modules
4) Wrap Modules With Plastic Film
5) Packing Modules into Plywood Cases
6) Mark Shipping Mark In The Cases
If any special requirements, we will pack it as requested.
FAQ
Q1. Are you a manufacturer or trader?
A: We are a manufacturer and we are located in Shanghai,China. We have our own design team for product design.
Q2: Can you explain the whole transaction process?
- Understand the specific needs of customers and determine the machine details.
- Sign the contract.
- Pay the deposit.
- The factory arranges production.
- Test and inspect the machine before shipment.
- Check by customers through online or on-site testing.
- Shipment and transportation, balance payment.
Q3.How much does Tablets Metal Detector cost?
There is no quick, easy answer to this question.Our machine is specific to the customer, so arriving at ‘standard pricing’ isn’t usually practical. Pricing largely depends upon your unique needs, such as the products you want to detect, the size of the product,the speed you want to achieve,or the complexity of the process. Contact us to get a specific quote.
Q4. What kind of shipping method can you provide?
A: By sea, by air and by international express.We will send the photo and video of machine to customer to check the machine running situation before delivery.
Q5. Do you accept customer logo and customization?
A: We accept all kinds of customization and logo for our customers for all our products.
Q6. How about the packing for product? Is it easy damaged during transportation?
A: No.We takes of wooden case and it is very safe.
