|| Product Introduction
Online 10 Lines Checkweighers are used at the end of high-speed packaging lines to perform high-speed, high-precision weight checks on stick packs and automatically reject rejects. With 10 independent weighing channels, they can process up to 10 stick packs simultaneously, meeting extremely high production speeds.

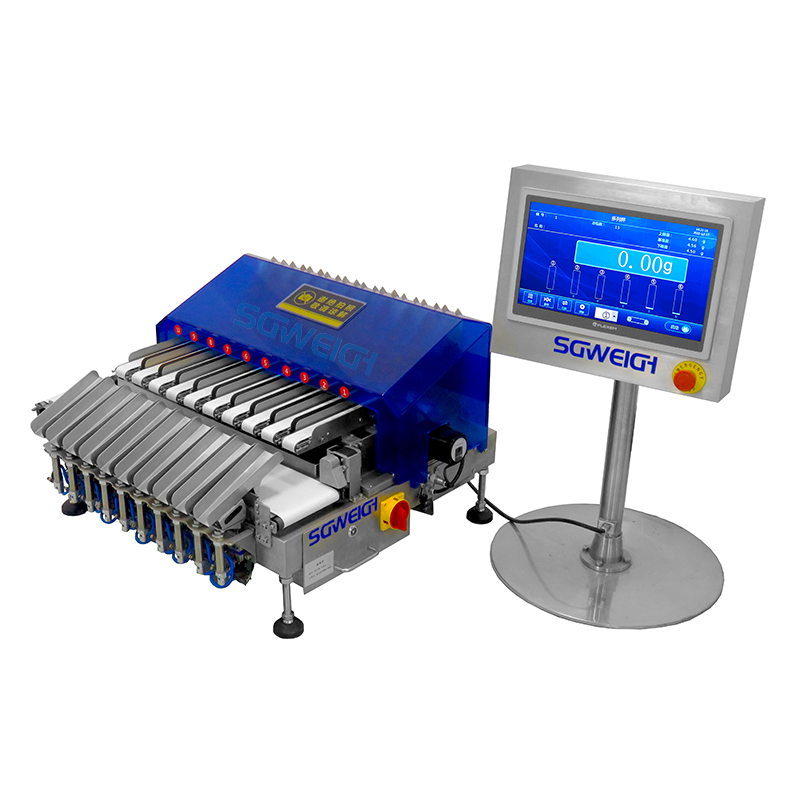

Stick Multi-Lane Weight Checker
|| Tech Specifications
Type:SG-10X
Weighing scope:2-300g
Restrictions of product:L:180 W:40 H:2-20(mm)
Accuracy:±0.01g (Depends on products)
Division scale:0.01g
Belt width:30mm
Highest speed:70pcs/min(one lane)
Weight of machine:about 200Kg
Powder supply：AC220V 50HZ
Power:about 300W
Main material:SUS304(Stainless Steel)
Multi-channel passing products to improve production efficiency
(the number of channels can be customized)
|| Main Features
1. Large color LCD touchscreen interface for easy operation and intuitive display.
2. Supports Chinese and English.
3. Can store test data for 100 types of products for user convenience.
4. USB data storage port allows report data to be transferred to a PC for analysis and printing.
5. Parameter settings are password-protected, restricting access to management personnel only.
6. Automatic zero-point tracking system ensures reliable test data.
7. External data communication port allows connection to other equipment on the production line (such as multi-lane packaging machines and metal detectors) (customizable).
8. Simple mechanical structure for easy disassembly, cleaning, and maintenance.
|| Application
|| Our Customers
|| Our Exhibitions
|| Package & Shipping
1.Before packaged, the machines will be tested strictly to guarantee the stability and high accuracy.
2.After tested, the machines will be wrapped with plastic sheet and carefully packed in wooden cases.
Packing Detail:
1.Each Machine with plastic film package first, then placed in a wooden case, wooden case with a foam filling.
2.We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers and ship them abroad.
