●Product Introduction

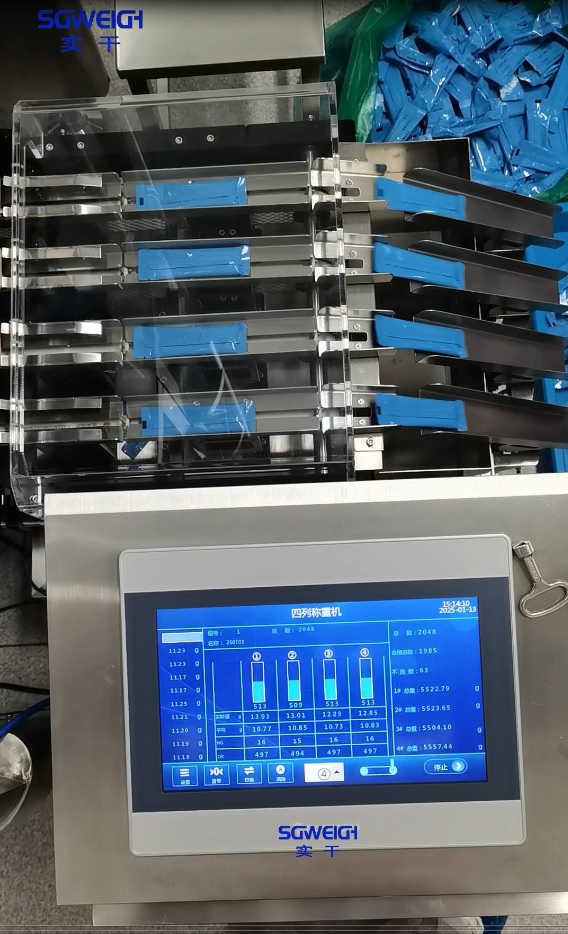

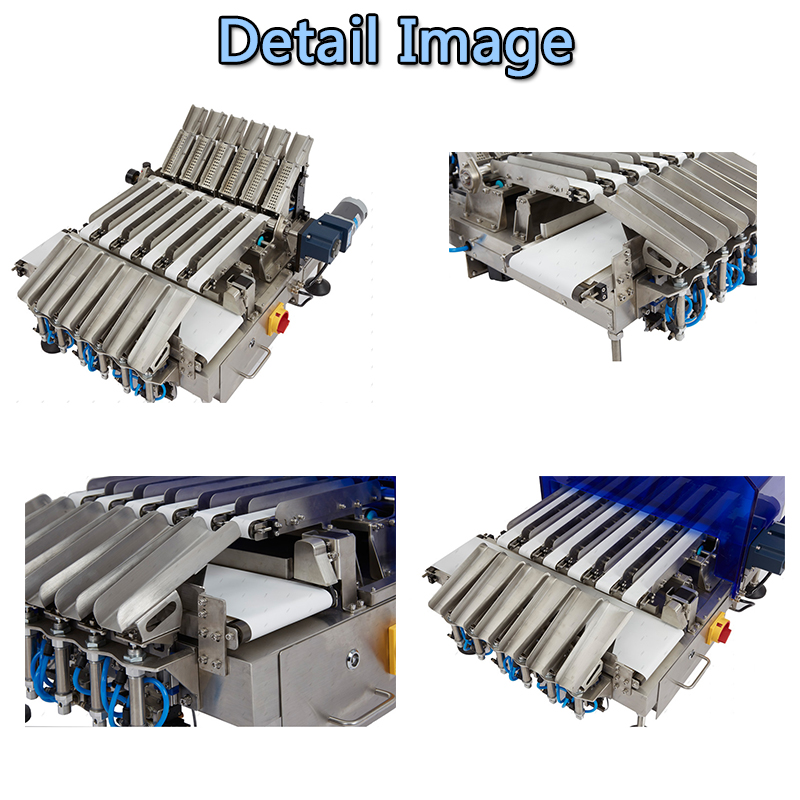

Single-Dose Packet Multi-lane Checkweigher can be connected to the discharge of a multi-lane packaging machine to check the weight of each lane of long, flexible bags, rejecting underweight or overweight products to a reject collection area.Multi-lane Checkweigher for Cosmetics Industry can also be connected directly to a cartoner. It is suitable for inspecting packaged cosmetics of various sizes and specifications, including tubes, single-dose sachets, pen-shaped bags, cans, and foil bags.
2 Line Checkweigher
8 Line Checkweigher
●Tech Specifications
Model:SG-6X
Weighing Range:1-50g
Minimum Scale:0.01g
Sorting Speed:70pcs/min (one lane)
Conveying Speed:20-100m/min
Operation Method:Touch operation
Conveying Direction:Can be placed according to the actual situation on site
Elimination Method:Lifting Rejection
Belt Height From The Ground:450±50mm (can be customized according to customer requirements)
Machine Structure:Stainless steel (SUS304)
Power Supply:220V 50-60HZ
Power:About400W
Windshield:Thick acrylic (to avoid airflow interference)
●Main Features
1. Large color LCD touchscreen interface.
2. Default language options are Chinese and English.
3. Adjustable conveyor speed.
4. Parameter settings are password-protected at three levels, restricting access to management personnel only.
5. Product weight data can be exported via USB.
6. Power-off protection ensures that parameters remain unchanged during power outages.
7. Storage for 100 product parameters for convenient user switching.
8. Simple mechanical structure and hook-and-loop conveyor belt for easy disassembly, cleaning, and maintenance.
9. Graphs/bar charts display the statistical distribution of sorting (re-inspection) results.
●Application
●Company
●Customers
●Exhibitions
●Package & Shipping
Inner use the plastic wrapping ,out package will use stronger wooden cases.
Our standard package process:
1) Dust & Cleaning
2) Lubricate Drive Parts
3) Divide Machine Into Modules
4) Wrap Modules With Plastic Film
5) Packing Modules into Plywood Cases
6) Mark Shipping Mark In The Cases
If any special requirements, we will pack it as requested.
