■ Product Overview

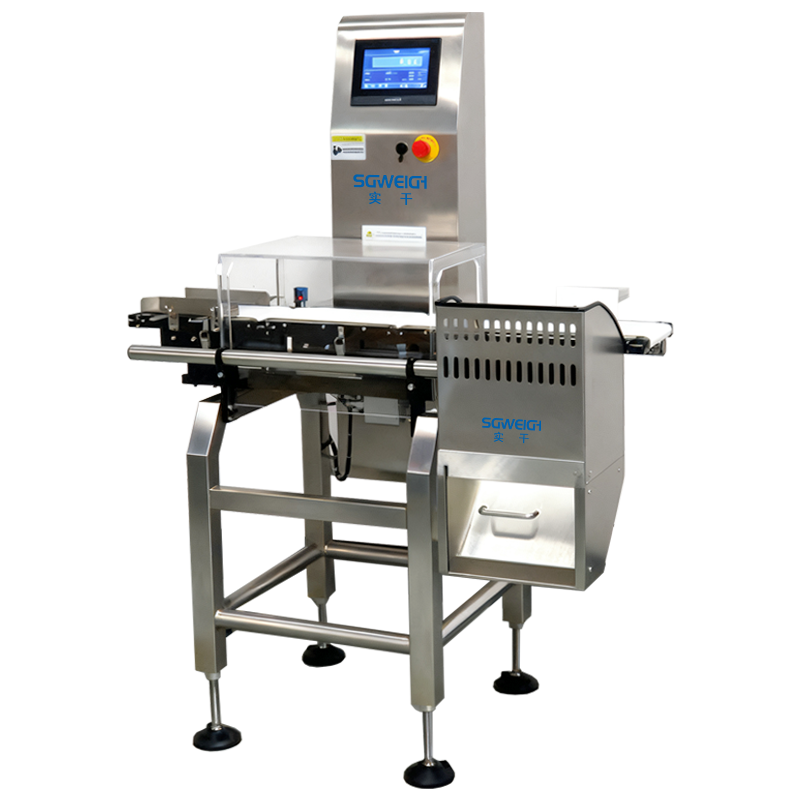

The Carton Check Weigher for Packaging Line is a high-accuracy automatic checkweigher designed for cartons, cases, and boxed products at the end of production or packaging lines.Individual Parts Weight Checker ensures every carton meets predefined weight specifications, helping manufacturers improve quality control, reduce giveaway.
This system is widely used in food & beverage, pharmaceuticals, cosmetics and chemicals industries.
■ Tech Specifications
Model:SG-150
Weighing range:5-500g
Minimum scale:0.1g
Checking speed :Max 120pcs/Min
Belt speed:0-65m/min
Box size limit:Length:200mm Width:150mm Height:3-200mm
Operation Way:Touch operation
Conveying direction:Facing the touch screen from left to right
Rejection method:Push Rejection
Belt height from the ground:750±50mm（can be customized）
Machine material:Stainless steel（SUS304）
Power supply:220V50/60HZ
Power:About300W
■ Main Features
1.High Accuracy Weight Inspection
Advanced load cell technology ensures stable and repeatable weighing performance, even for heavy or bulky cartons.
2.Wide Weight & Size Range
Suitable for small cartons to large heavy cases, typically covering 5 kg up to 50 kg or higher, with customizable conveyor width and length.
3.Seamless Packaging Line Integration
Designed to integrate easily with carton sealers, case packers, palletizers, and labeling systems.
4.Automatic Reject System
Equipped with pusher, drop flap, or stop-belt reject mechanisms to remove underweight or overweight cartons without interrupting line flow.
5.User-Friendly Touchscreen Interface
PLC + HMI control with recipe management, real-time statistics, and alarm functions for efficient operation.
6.Industrial-Grade Construction
Heavy-duty stainless steel or painted steel frame ensures durability in demanding industrial environments.
■ Application
■ Customers
■ Exhibitions
■ Packaging & Delivery
Inner use the plastic wrapping ,out package will use stronger wooden cases.
Our standard package process:
1) Dust & Cleaning
2) Lubricate Drive Parts
3) Divide Machine Into Modules
4) Wrap Modules With Plastic Film
5) Packing Modules into Plywood Cases
6) Mark Shipping Mark In The Cases
If any special requirements, we will pack it as requested.
