■ Product Overview

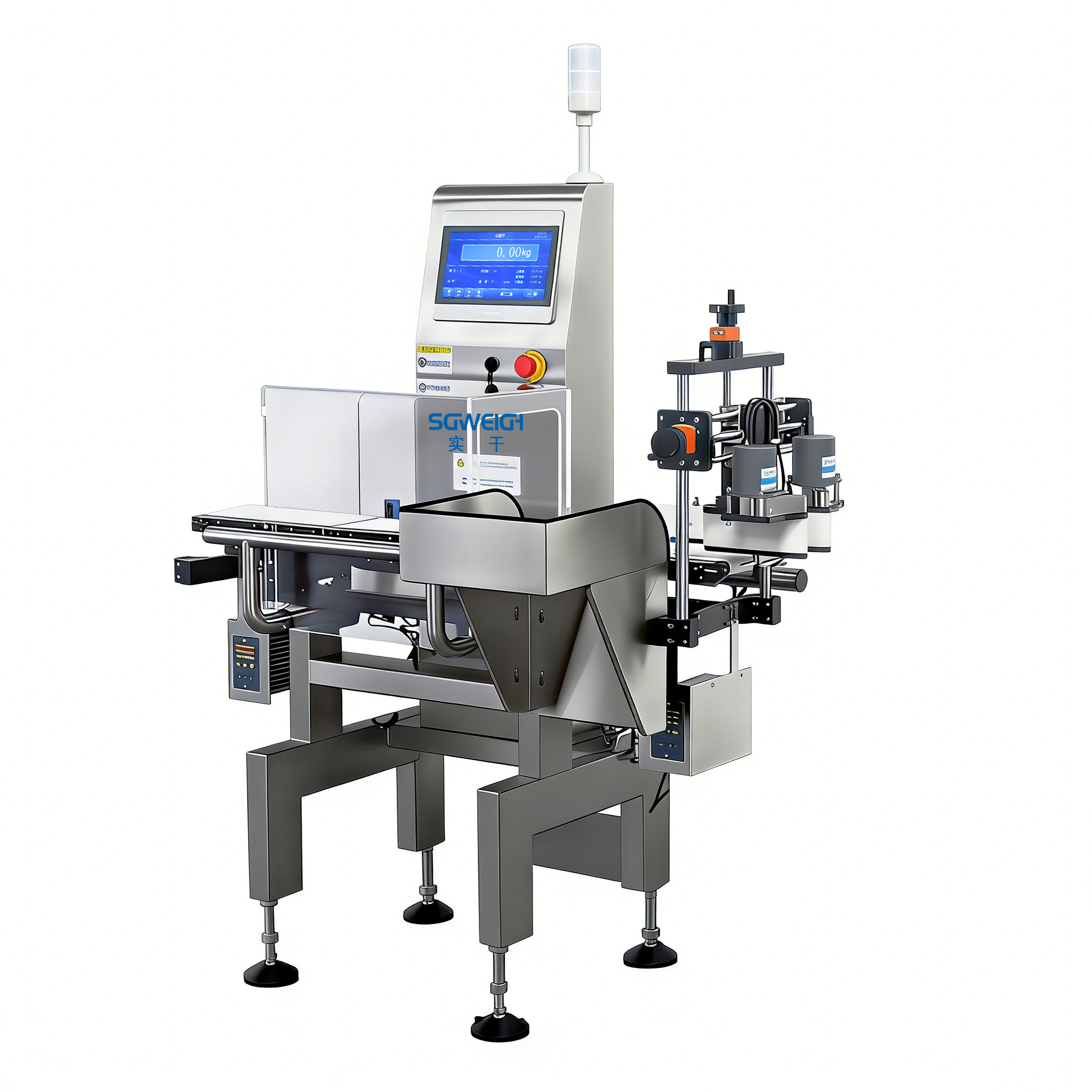

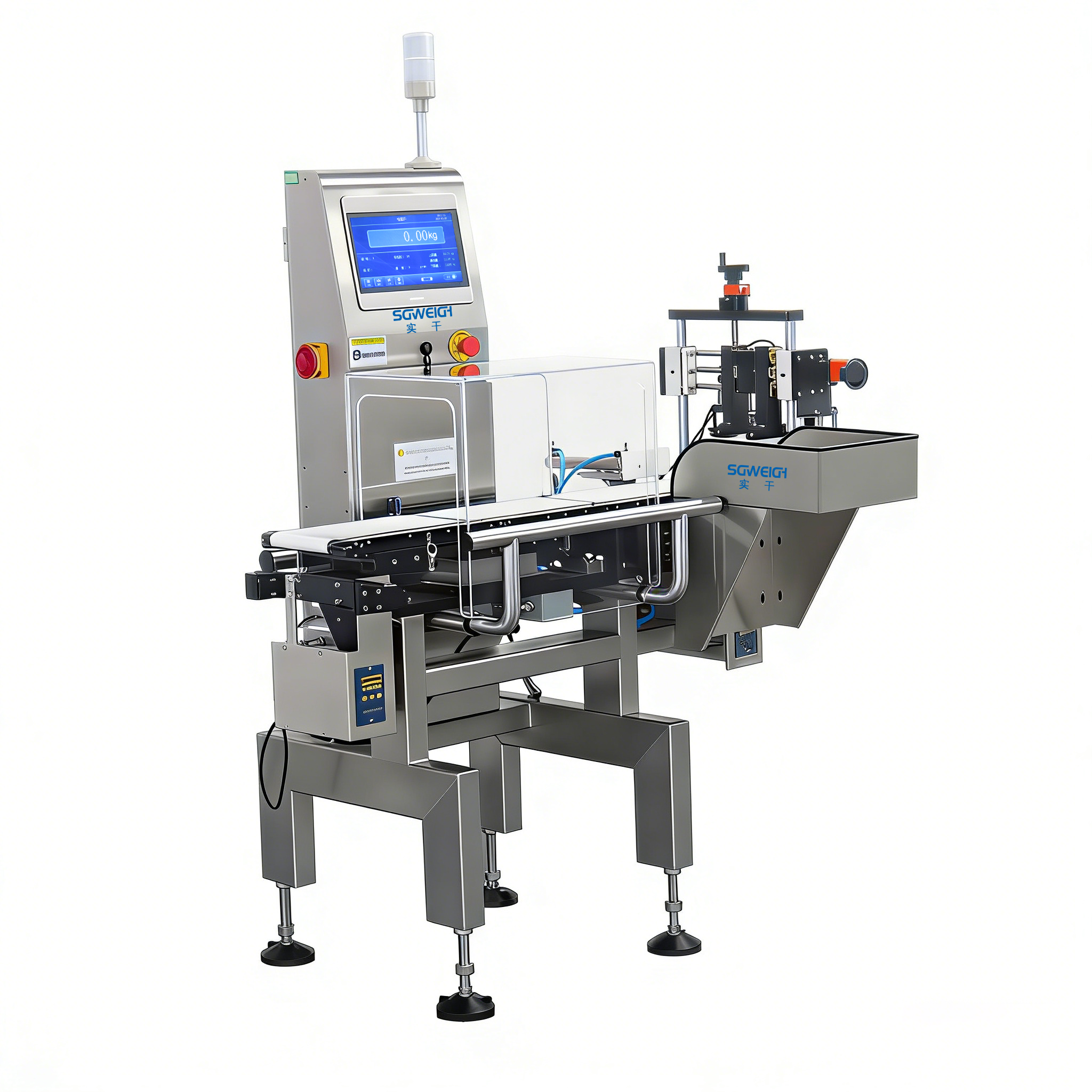

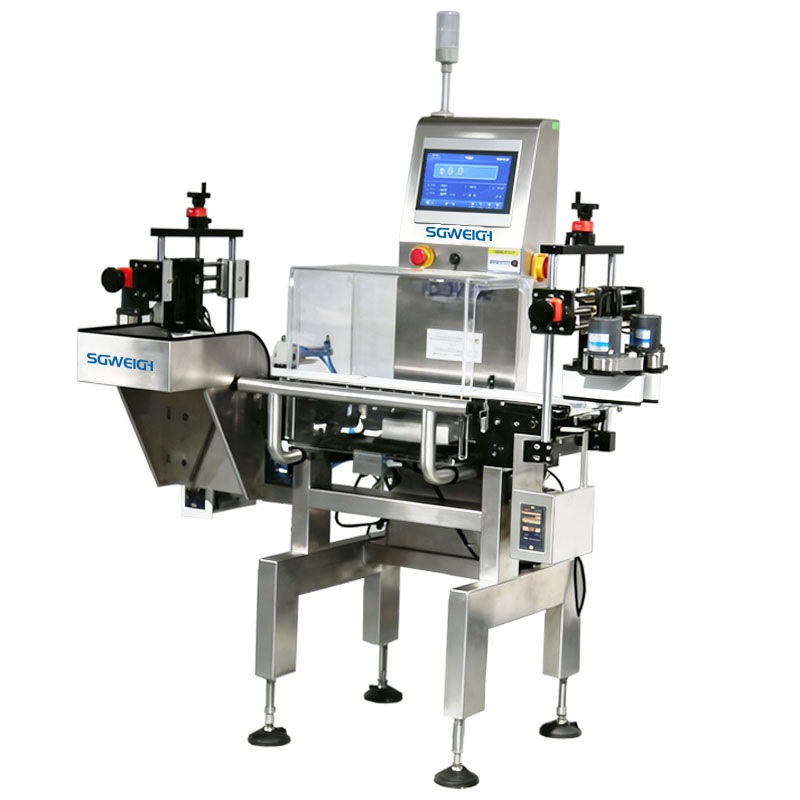

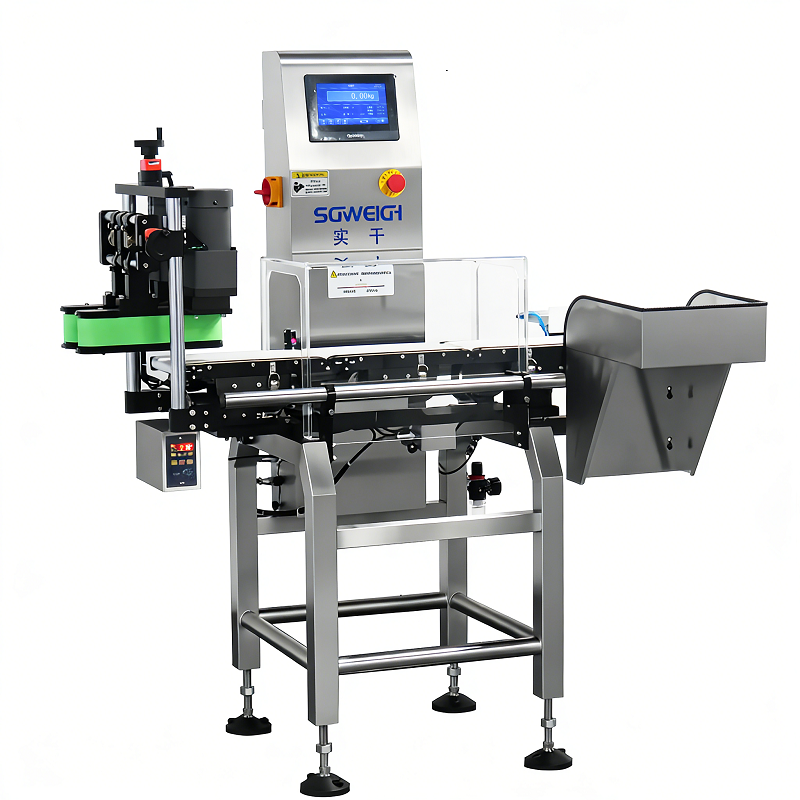

The Bottle Production Line Checkweigher is an online weight detection device designed specifically for high-speed automated bottling production lines. It is suitable for post-filling weight detection of products such as liquids, pastes, granules, and capsules. The Bottle Weight Inspection System can seamlessly interface with filling machines, capping machines, labeling machines, and other equipment to achieve automatic weighing, automatic rejection, and data statistics, ensuring that every bottle of product meets weight standards.
■ Tech Specifications
Type:SG-100HH
Weighing scope:2-300g
Restriction of product:L:100 W:100 H:2-150(mm)
Accuracy:±0.01g(Depends on products)
Division scale:0.01g
Highest speed:450pcs/min(Depends on products)
Belt width:100mm
Belt Speed:0-120m/min
Weight of machine:about 120kg
Power supply:AC220V±10%50HZ
Power:about 200W
Main material:SUS304
■ Main Features
1. High-precision dynamic weighing
Accuracy up to ±0.1g~±2g (depending on product specifications)
Suitable for small bottles and high-speed production line inspection
2. High-speed and stable operation
Inspection speed up to 60-200 bottles/minute
Supports continuous operation, suitable for mass production
3. Automatic rejection system
Supports lever-type, air-blowing, and push-bar rejection methods
Automatically rejects underweight or overweight products
4. Data statistics and traceability
Records production data
Supports USB export
Can be integrated with MES/ERP systems
5. User-friendly interface
Touchscreen control
Multiple product parameter storage
Quick switching between different bottle sizes
6. Modular design
Customizable conveyor structure according to bottle type
Optional protective cover and waterproof design (IP rating optional)

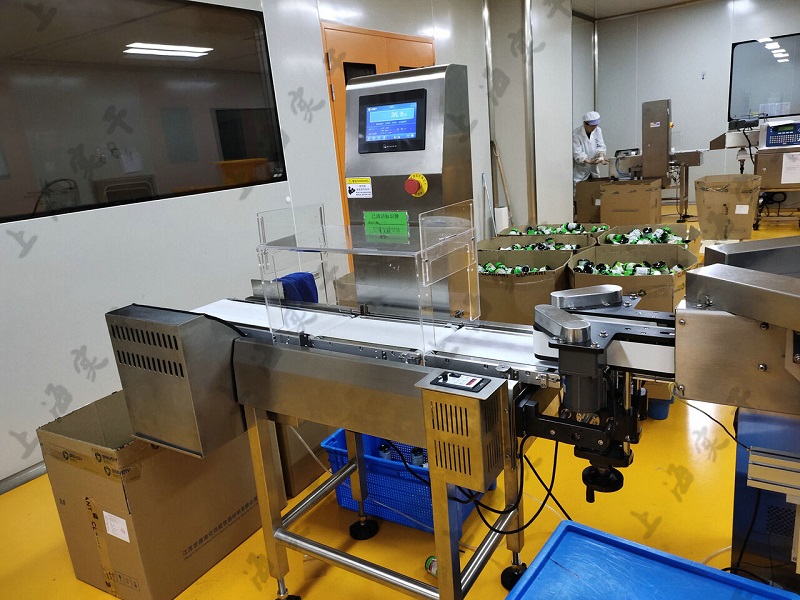

■ Application
■ Customers
■ Exhibitions
■ Packaging & Delivery
Our machines is fully tested and calibrated before delivery.
It is packed in a strong wooden case with internal shockproof protection.
Various shipping options are available — by sea, air, or land — ensuring safe and on-time delivery by professional logistics partners.
