■ Product Introduction

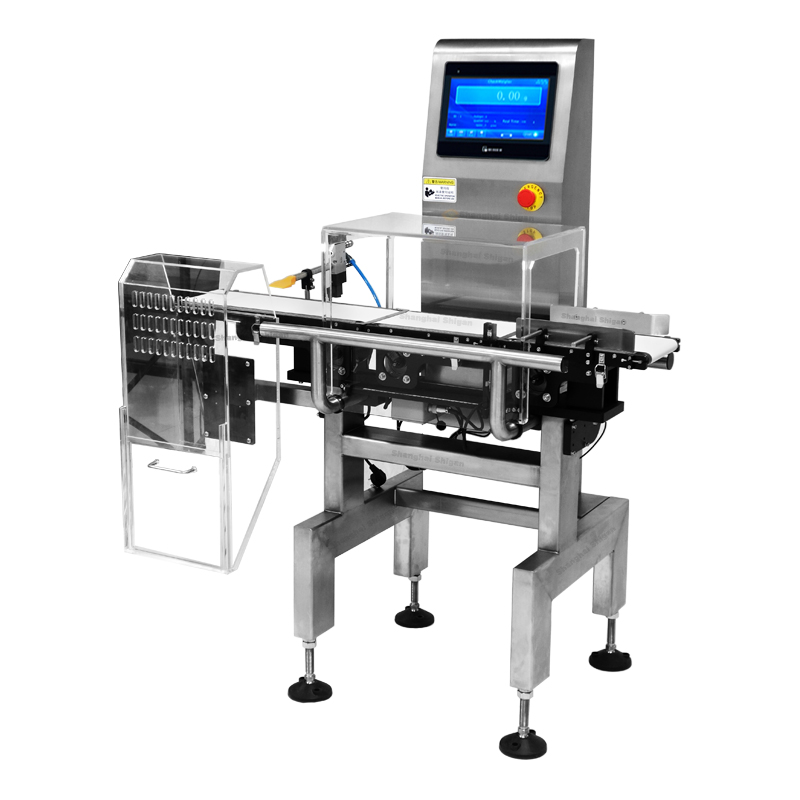

30-50g Small Unit Carton Checkweigher can achieve high-speed and high-precision weight detection on the production line, automatically rejecting products that are missing instructions or are underweight or overweight. It can improve product quality and control corporate costs. All checkweigher models can be customized.

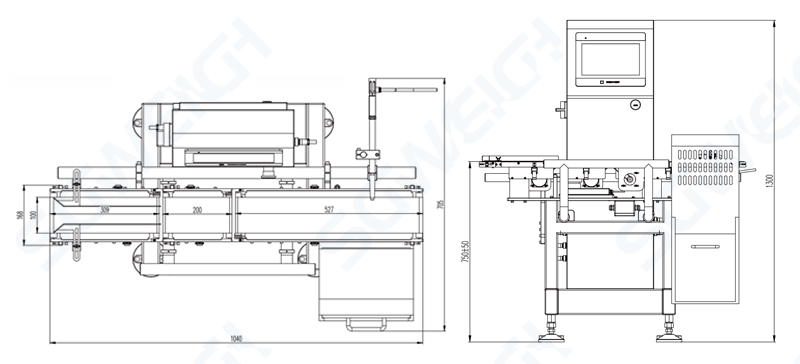

Box Containing Bottle Weight Detection Machine
■ Tech Specifications
Type:SG-100
Weighing Range:2-300g
Limited of product:L:100 W:100 H:2-150mm
Accuracy:±0.05g Depend on products
Division Scale:0.01g
Belt Speed:0-90m/min
Max Speed:260 pcs/min
Belt Width:100mm
Machine Weight:70kg
Power Supply:AC 110/220V ±10% 50HZ
Power:100W
Main Material:SU304 stainless steel
■ Main Features
1. High-precision weighing
Adopt high-sensitivity sensor to ensure weighing accuracy.
Applicable to boxed products of different specifications.
2. Automated detection
Seamlessly connect with the production line to realize automatic weighing and automatic sorting, and improve production efficiency.
Can be matched with rejection devices (such as push rods, air blowing, diversion belts, etc.) to automatically remove unqualified products.
3. User-friendly operation
Touch screen control, simple parameter setting, support for multiple groups of recipe storage.
Can set upper and lower weight limits, automatic alarm and record data when out of tolerance.
4. Data recording and traceability
Built-in data storage function, can record the weight, detection time, etc. of each product.
Support USB/network export, convenient for quality analysis and production statistics.
5. Stable and durable
Adopt stainless steel anti-corrosion material, suitable for humid, dusty and other industrial environments.
Strong anti-interference ability, reduce the influence of factors such as vibration.

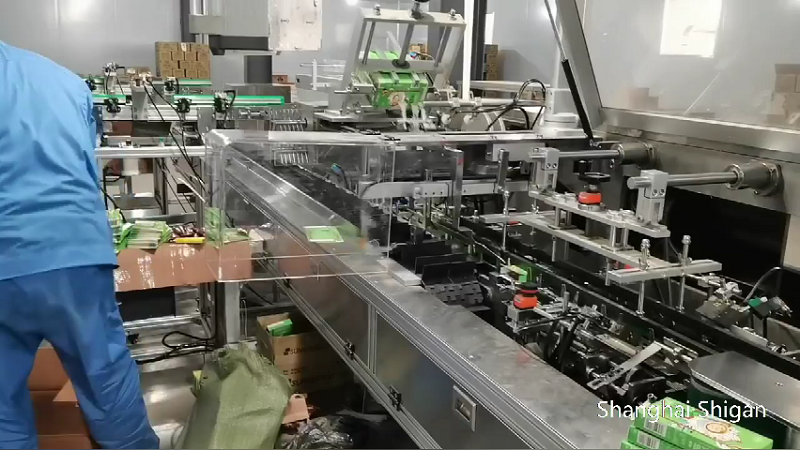

■ Application
■ Company
■ Customers
■ Exhibitions
■ Package & Shipping
1.Before packaged, the machines will be tested strictly to guarantee the stability and high accuracy.
2.After tested, the machines will be wrapped with plastic sheet and carefully packed in wooden cases.
Packing Detail:
1.Each Machine with plastic film package first, then placed in a wooden case, wooden case with a foam filling.
2.We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers and ship them abroad.
