■ Product Overview

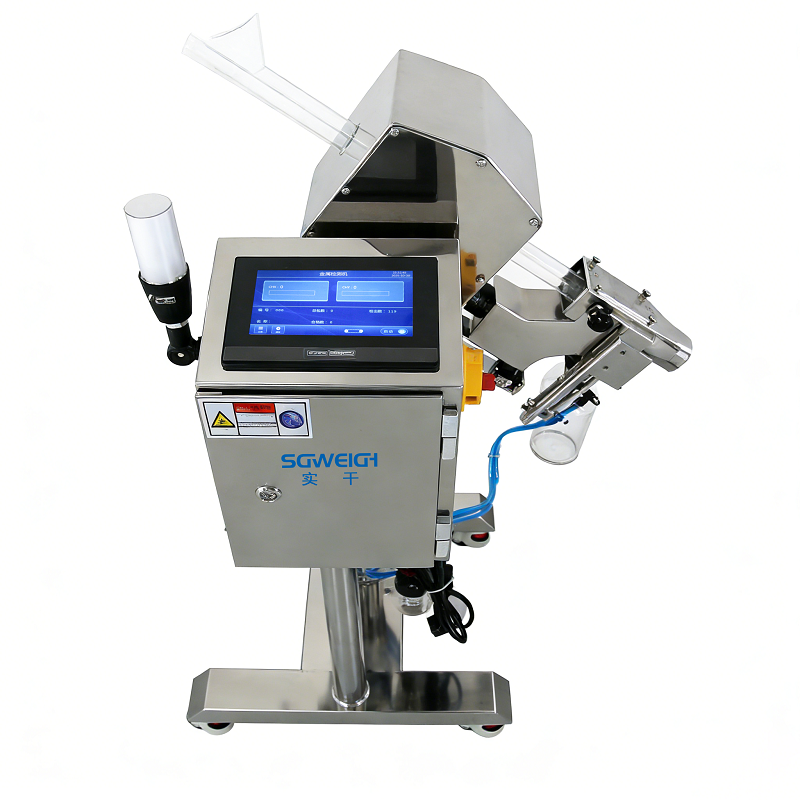

Tablet Metal Detector for Pharmaceutical is a high-sensitivity metal contamination inspection machine specially designed for tablets, pills, caplets in pharmaceutical production. It complies with GMP, FDA, CE standards, ensuring product safety, quality control and regulatory compliance.GMP Standard Tablets Metal Detector accurately detects all metal contaminants (ferrous, non-ferrous, stainless steel) during tablet conveying or falling, preventing defective products from entering the market.
■ Tech Specifications
| Type | SG-M50 |
| Inlet height | 770-930mm Port size: 76mm |
| Outlet Height | 770-860mm Port size: 51mm |
| Effective passing size | W70*H20mm |
| Maximum production capacity | 500,000 pcs/hour |
| Sensitivity(adjustable or not) | Yes |
| Operation Mode | Touch Screen/LED fast key input |
| Removal method | flip culling |
| Working voltage | 220V/110V, 50/60HZ |
| Note: The above sensitivity is when the test block freely falls through the detection pipeline. The actual detection sensitivity may vary due to different product characteristics or working environments,it should be based on the actual detection sensitivity. | |
■ Main Features
1.Ultra-high sensitivity for all metal contaminants.
2.Non-damaging tablet conveying design.
3.Automatic rejection system for defective products.
4.GMP hygienic & easy-clean structure.
5.Stable operation, high-speed online detection.
6.Data record & audit trail for quality traceability.
■ Application
■ Company
■ Customers
■ Exhibitions

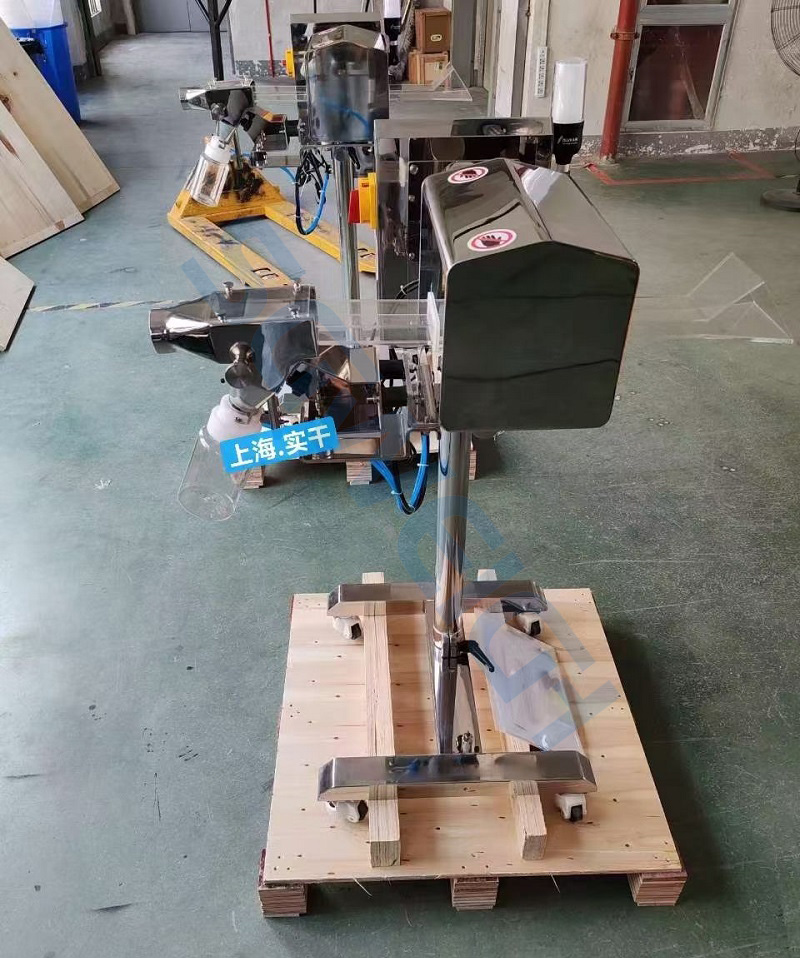

■ Packaging & Delivery
1. Industrial-grade professional packaging ensures safe transportation throughout the entire process, guaranteeing accurate and worry-free delivery.
2. Customized protective packaging + professional logistics safeguard the safe arrival of every piece of equipment.
3. Stringent packaging standards and efficient transportation guarantees facilitate the smooth implementation of projects.
■ FAQ
Q1.Is it suitable for pharmaceutical tablets only?
A: No, it also applies to tablets, pills, caplets and coated tablets.
Q2.Does it comply with pharmaceutical standards?
A: Yes, it fully meets GMP, CE, FDA requirements with hygienic, easy-clean structure.
Q3.Will it damage or break tablets during detection?
A: No. It uses gentle conveying and free-fall design to avoid crushing or scratching tablets.
Q4.What is the sensitivity level?
A: High sensitivity: detectable from φ0.3mm–φ1.5mm depending on tablet size and material.
Q5.Does it have automatic rejection?
A: Yes, automatic reject system removes defective products without stopping the production line.
Q6.Can it store inspection data?
A: Yes, it supports data recording, count statistics and audit trail for quality traceability.
Q7.Is it easy to operate and clean?
A: User-friendly touch screen, simple operation. Quick disassembly structure for CIP/SIP cleaning.
Q8.Can it be integrated into a production line?
A: Yes, compact design for easy integration with tablet press, packaging and conveying lines.
Q9.What is the working speed?
A: Supports high-speed online inspection, matching normal pharmaceutical production efficiency.
