■ Product Introduction

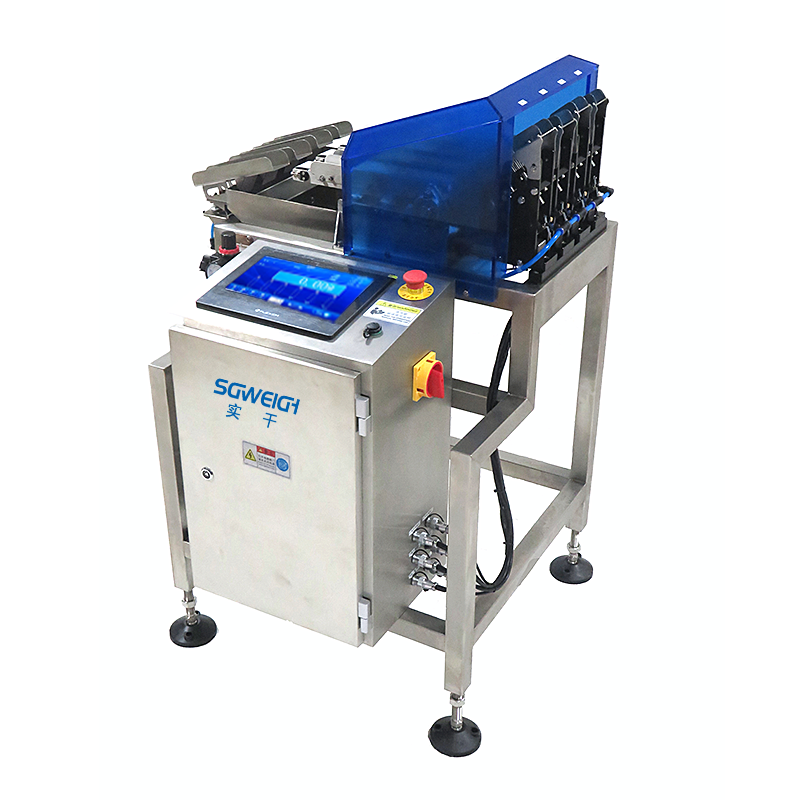

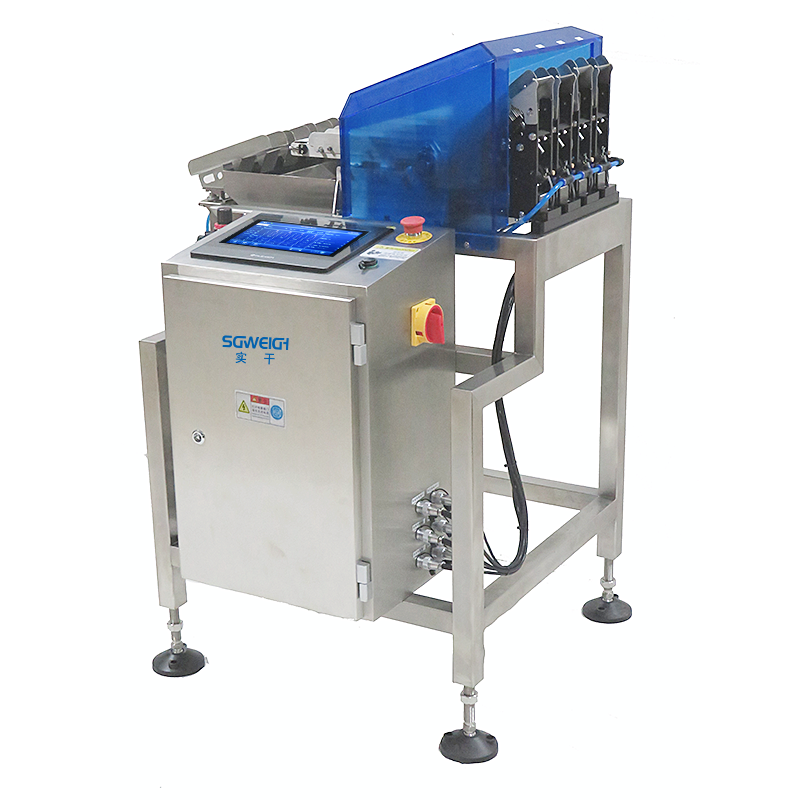

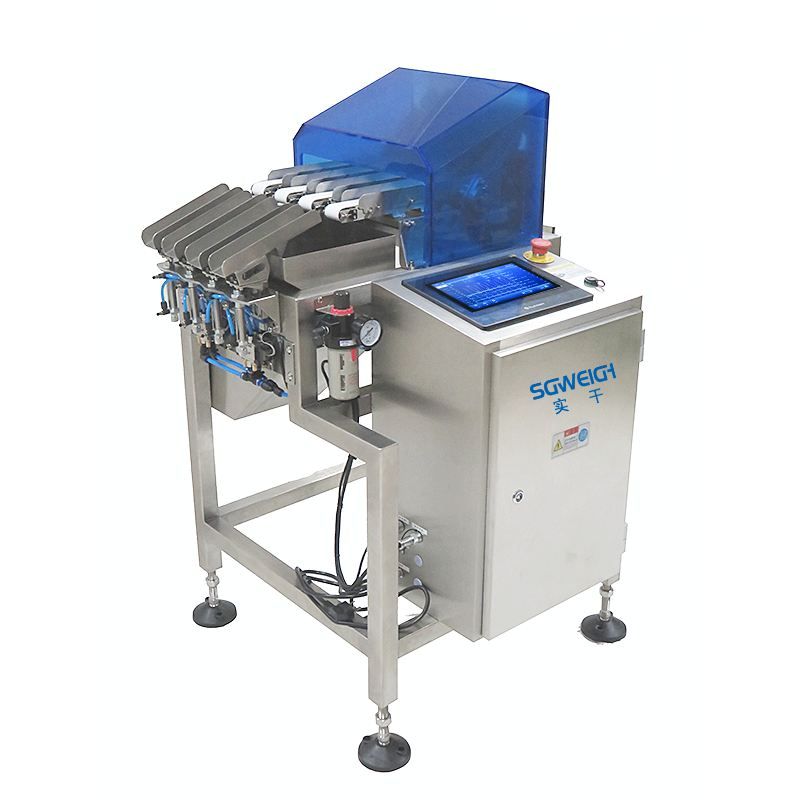

Multi-Conveyor Checkweigher’s an automated production line machine that simultaneously handles, weighs, and sorts four parallel streams of filled food sachets.
High Speed 4-lane Sachet Checkweigher is an essential piece of quality control and production efficiency equipment for any food manufacturer producing high volumes of sachet-based products.
■ Tech Specifications
Model:SG-4X
Weighing range:1-50g
Accuracy:0.01g
Weighing speed:The single-lane speed can reach up to 70 pcs/min (depending on the length of the product)
Restrictions of product:L:180 W:40 H:2-20(mm)
Operation way:Touch screen
Operation screen:12 inch screen
Material:Stainless steel（SUS304）
Power supply:220V 50-60HZ
Power:About 200W
Weight:About160KG
Remark:The properties of the tested products and the use environment are different, and the detection speed and accuracy are also different. The actual test is the standard.
■ Main Features
1.100% Weight Verification: Ensures every single sachet leaving your production line meets the declared weight, protecting against underfills and overfills.
2.Maximized Productivity: The 4-lane design is engineered for high-volume production, preventing the checkweigher from becoming a bottleneck.
3.Reduced Product Giveaway: By tightly controlling the fill weight and minimizing overfills, you save a significant amount of product over time, leading to substantial cost savings.
4.Regulatory Compliance: Helps ensure compliance with weights and measures regulations (e.g., FDA, EU Packaged Goods Regulations) which mandate that the actual contents must not be less than the declared weight.
5.Process Control & Data Insights: The data collected helps identify trends in the filling process,allowing for proactive maintenance and reducing downtime.
■ Application
■ Customers

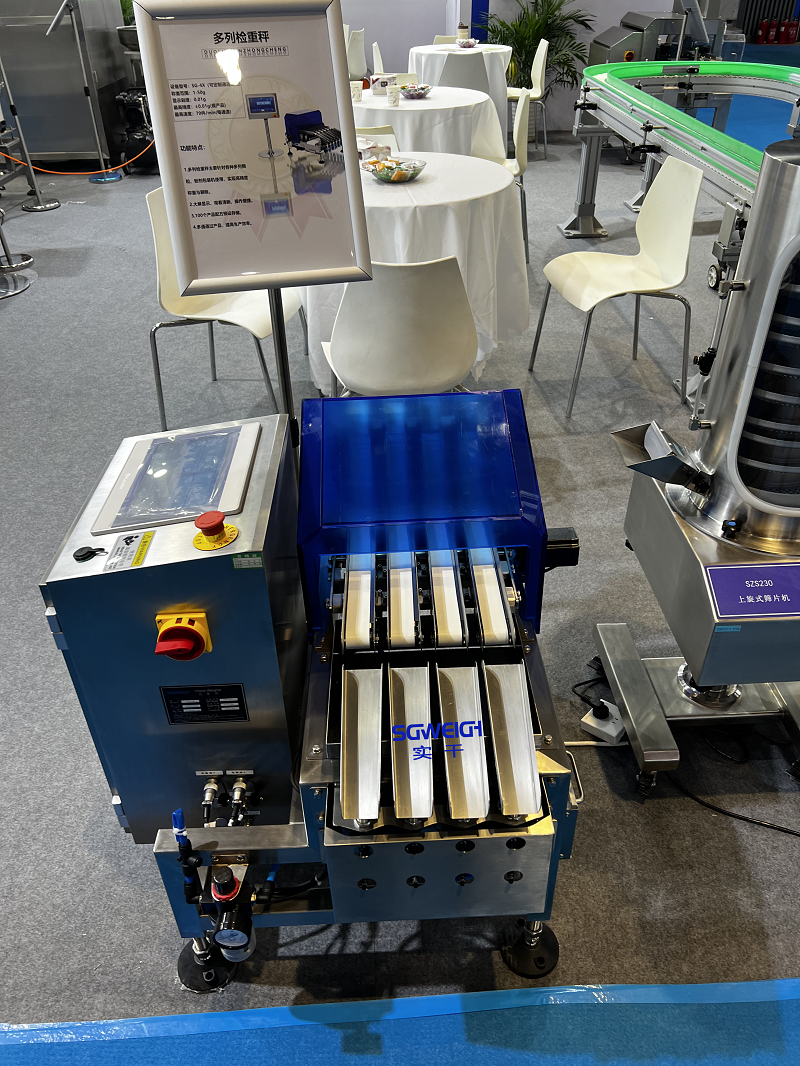

■ Exhibitions
■ Package & Shipping
Inner use the plastic wrapping ,out package will use stronger wooden cases.
Our standard package process:
1) Dust & Cleaning
2) Lubricate Drive Parts
3) Divide Machine Into Modules
4) Wrap Modules With Plastic Film
5) Packing Modules into Plywood Cases
6) Mark Shipping Mark In The Cases
If any special requirements, we will pack it as requested.
