Product Overview
Touch Screen Mini Automatic Multi lanes Checkweigher is suitable for on-site product weight checking of multi-column packaging machines, checking the weight of each column of stick packages, and removing underweight or overweight products to the unqualified collection area.Spice Stick Check Weigher can detect the weight of multiple columns at the same time, greatly improving the weighing speed.
Product Parameter
Model:SG-6X
Weighing Range:1-50g
Minimum Scale:0.01g
Sorting Speed:70pcs/min (one lane)
Conveying Speed:20-100m/min
Operation Method:Touch operation
Conveying Direction:Can be placed according to the actual situation on site
Elimination Method:Lifting Rejection
Belt Height From The Ground:450±50mm (can be customized according to customer requirements)
Machine Structure:Stainless steel (SUS304)
Power Supply:220V 50-60HZ
Power:About400W
Standard Features
1. Suitable for multi-row automatic weight detection of small packaged products such as food, medicine, and daily necessities.
2. Count the products that pass through, and the sorting device automatically removes unqualified products.
3. Can be matched with multi-row packaging machines, automatic filling machines, metal detectors, etc.
4. One control module and display screen.
5. Has the accuracy and speed of multiple single-row checkweighers.
6. Can be remotely monitored in real time.
7. Space saving and low cost.
Scope of Application
Customer Visit
Exhibition
Packaging&Shipping

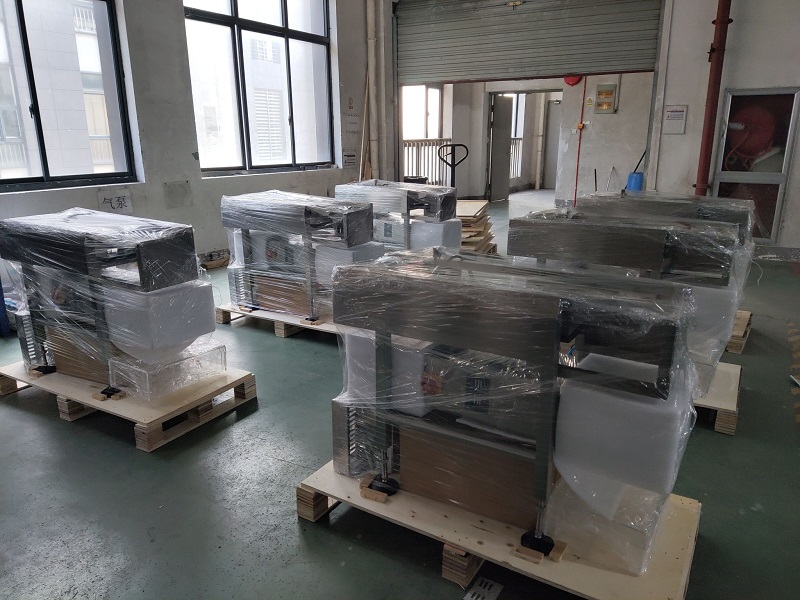

Inner use the plastic wrapping ,out package will use stronger wooden cases.
Our standard package process:
1) Dust & Cleaning
2) Lubricate Drive Parts
3) Divide Machine Into Modules
4) Wrap Modules With Plastic Film
5) Packing Modules into Plywood Cases
6) Mark Shipping Mark In The Cases
If any special requirements, we will pack it as requested.
