■ Product Overview

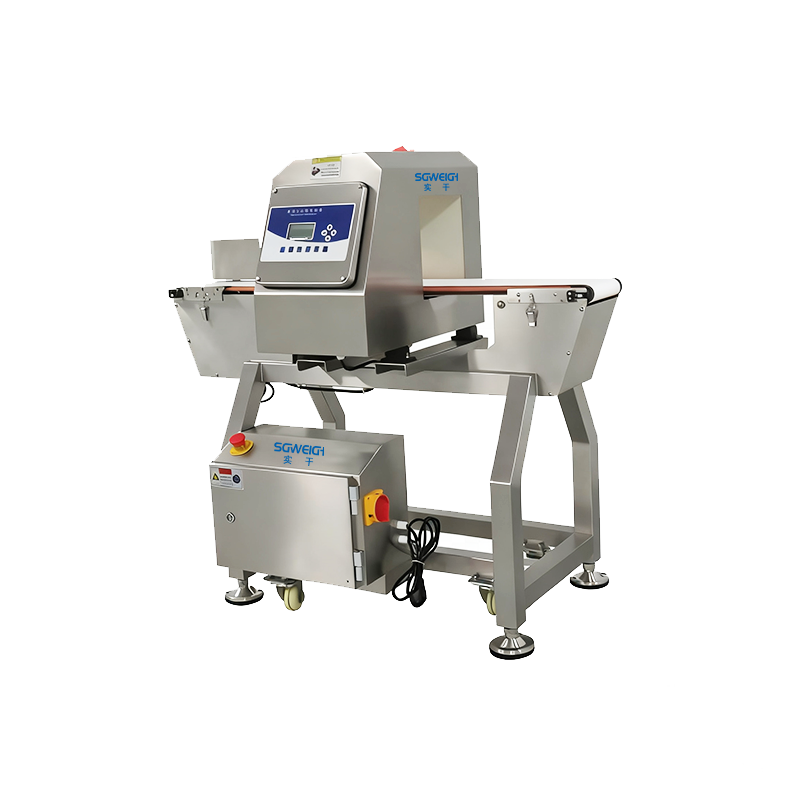

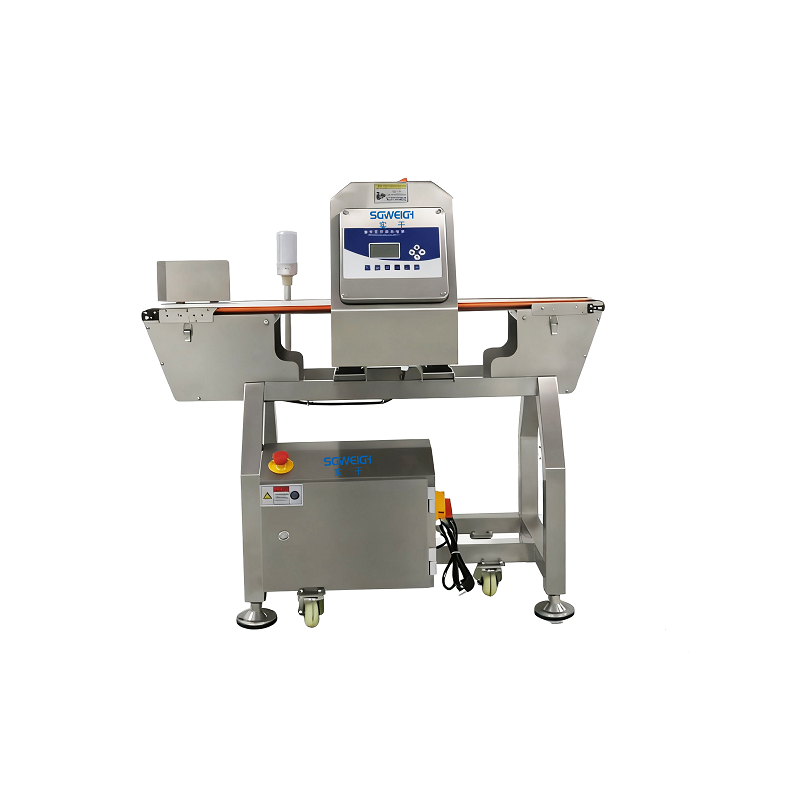

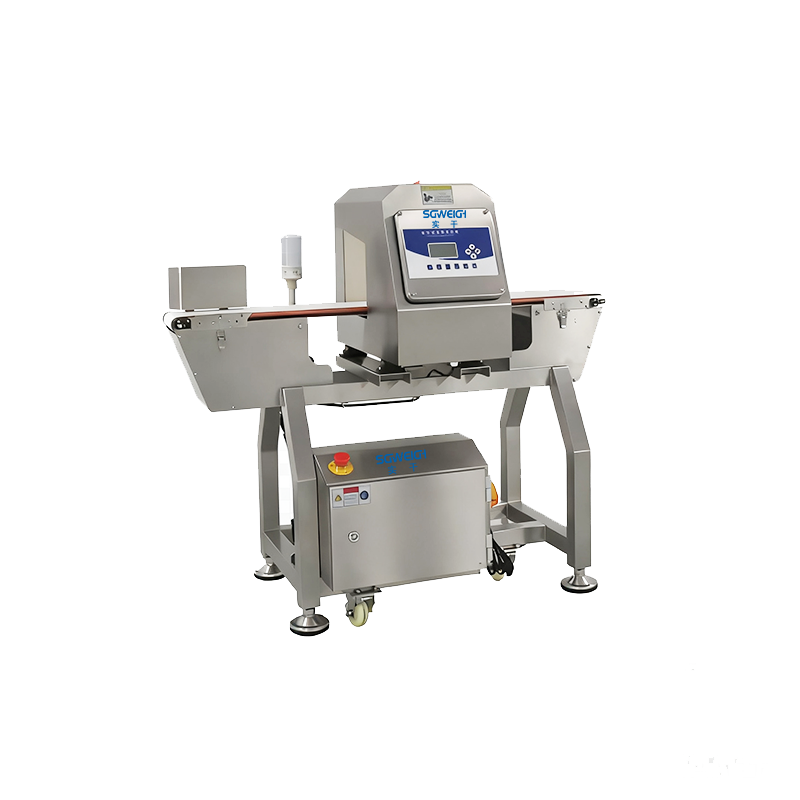

The Jelly Candy Conveyor Metal Detector is a high-sensitivity inspection system specifically designed for sticky, high-moisture confectionery products such as jelly candies, gummies, and soft sweets.
Equipped with a food-grade conveyor belt and automatic reject system, the machine can continuously inspect products in real-time and automatically remove contaminated items without interrupting production.
Food Industry Metal Detector is widely used in confectionery manufacturing lines to meet strict food safety standards such as HACCP and export compliance requirements.
■ Tech Specifications
| Machine Grade | Food Grade |
| Detection sensitivity: in empty state | H-100mm: Fe≥Φ0.8mm, Non-Fe≥Φ1.5mm, SUS≥Φ1.5mm
H-120mm: Fe≥Φ0.8mm, Non-Fe≥Φ1.5mm, SUS≥Φ2.0mm H-150mm: Fe≥Φ1.0mm, Non-Fe≥Φ1.5mm, SUS≥Φ2.0mm H-200mm: Fe≥Φ1.2mm, Non-Fe≥Φ2.0mm, SUS≥Φ2.5mm |
| Detect method | Electromagnetic wave detection |
| Detecting width | 150-1000mm customized according to requirements |
| Detecting height | 80-500mm (or custom-made) |
| Detecting adjustment | Intelligent adjustable |
| Belt Speed | 25m /min (or specified) |
| Display and operation mode | LED fast key input/Touchscreen |
| Protection class | IP65 |
| Alarm mode | metal detection, alarm belt stop or automatic removal |
| Power requirements | AC220V 50HZ |
■ Main Features
1. High sensitivity detection of Fe/Non-Fe/SUS.
2. Resistant to “product effect” (suitable for high-sugar, high-moisture jellies).
3. Automatic rejection system (air blow/push rod optional).
4. Food-grade stainless steel construction, easy to clean.
5. Supports high-speed continuous online detection.
6. Stable operation, suitable for humid environments.
■ Application
■ Company
Shanghai Shigan Industrial Co., Ltd.
National High-tech Enterprise
Member Unit of China Pharmaceutical Equipment Industry Association
■ Customers
■ Exhibitions
■ Packaging & Delivery
Inner use the plastic wrapping ,out package will use stronger wooden cases.
Our standard package process:
1) Dust & Cleaning
2) Lubricate Drive Parts
3) Divide Machine Into Modules
4) Wrap Modules With Plastic Film
5) Packing Modules into Plywood Cases
6) Mark Shipping Mark In The Cases
If any special requirements, we will pack it as requested.
■ FAQ
Q1. How does the automatic reject system work?
A: When metal contamination is detected, the system sends a signal to the reject device. The contaminated product is then removed from the conveyor via:
Air blast (for lightweight items)
Pusher rejector (for packaged goods)
Drop or flap reject system (for bulk products)
Q2. Why is an auto reject system important in metal detection?
A: An automatic reject system ensures:
100% inspection accuracy
Elimination of human error
Compliance with food safety standards like HACCP
Continuous high-speed production without manual intervention
Q3. What industries use conveyor metal detectors?
A: These systems are widely used in:
Food processing (snacks, meat, seafood, frozen food)
Pharmaceuticals (tablets, capsules)
Packaging industries
Plastics and chemical processing
Q4. Can the system handle high-speed production lines?
A: Yes. Conveyor metal detectors with auto rejectors are designed for high-speed production and can inspect hundreds of products per minute while maintaining accuracy.
Q5. How do I choose the right reject system?
A: You should consider:
Product weight and size
Conveyor speed
Packaging type
Production environment
For example, air blast is ideal for lightweight items, while pushers are better for heavier packaged goods.
