Product Introduction
Multi lines Check Weigher Machine is an automatic weighing system, often used in high-speed production or packaging lines.SGWEIGH can be customized with 2-12 independent channels, providing huge productivity in a space-saving form.

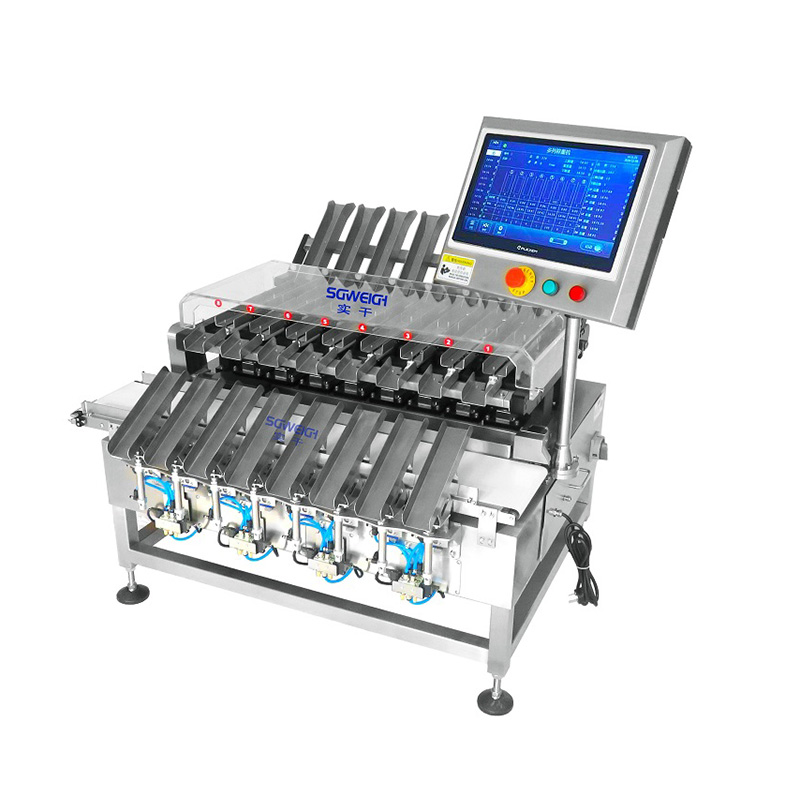

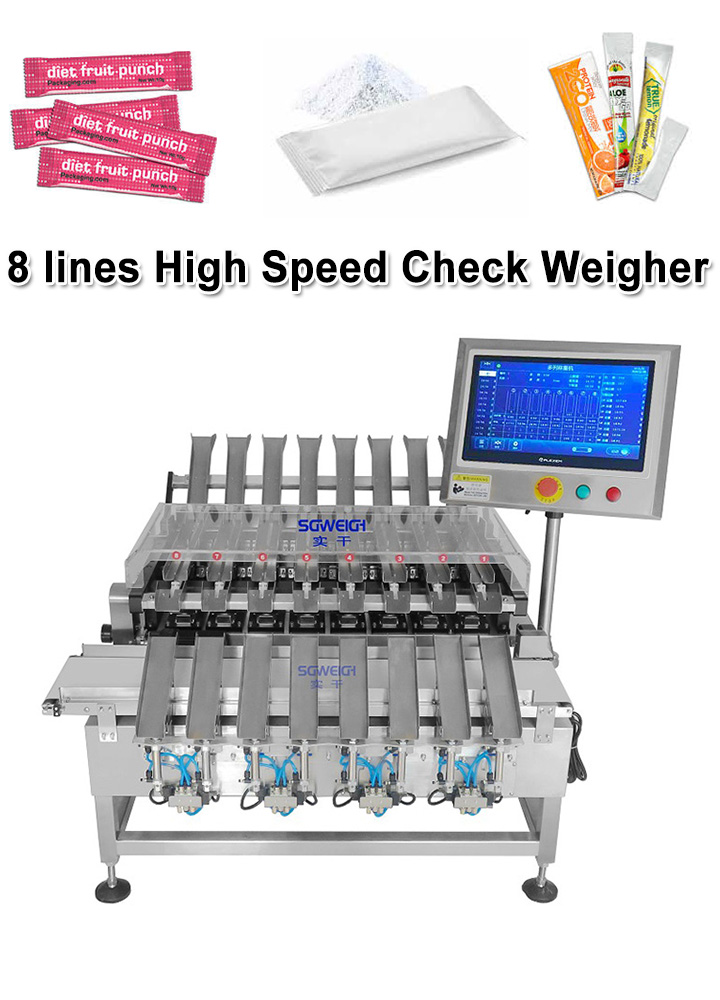

Multi lines Check Weigher Machine
Tech Specifications
Model:SG-8X
Weighing Range:1-50g
Minimum Scale:0.01g
Sorting Speed:70pcs/min (one lane)
Conveying Speed:20-100m/min
Operation Method:Touch operation
Conveying Direction:Can be placed according to the actual situation on site
Elimination Method:Lifting Rejection
Belt Height From The Ground:450±50mm (can be customized according to customer requirements)
Machine Structure:Stainless steel (SUS304)
Power Supply:220V 50-60HZ
Power:About400W
Main Features
1. Data from multiple channels can be counted independently or comprehensively;
2. Checkweighing parameters can be set independently or uniformly;
3. One control module and display screen;
4. It has the accuracy and speed of multiple single-lane checkweighers;
5. It can be monitored remotely in real time;
6. It saves space and is low in cost.
Application
Our Company
Our Customers
Our Exhibitions
Package & Shipping
1.Before packaged, the machines will be tested strictly to guarantee the stability and high accuracy.
2.After tested, the machines will be wrapped with plastic sheet and carefully packed in wooden cases.
Packing Detail:
1.Each Machine with plastic film package first, then placed in a wooden case, wooden case with a foam filling.
2.We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers and ship them abroad.
Tag:Multi lines Check Weigher Machine
