■ Product Introduction

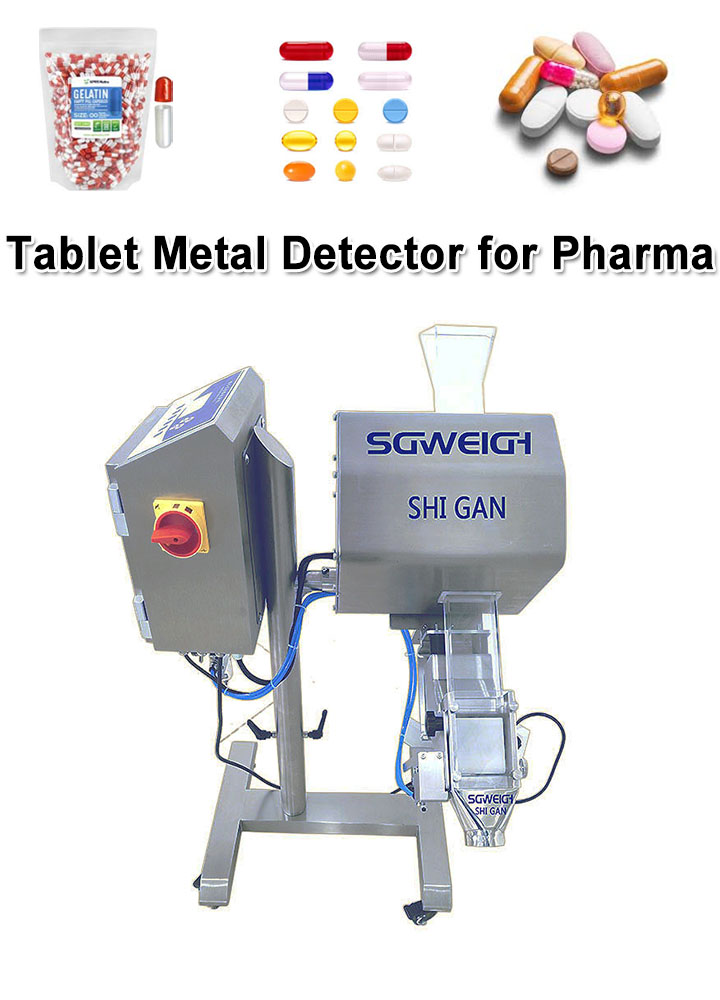

The High-Precision Pharma Metal Detector offers unmatched metal detection sensitivity, detecting all metal contaminants, including non-magnetic stainless steel and hard-to-find micro screen contaminants. Suitable for the pharmaceutical industry,Metal Detector for Tablets Capsules is designed and manufactured to meet the stringent requirements of the pharmaceutical industry.
■ Tech Specifications
Type:SG-M50
Inlet height: 770-930mm Port size: 76mm
Outlet Height: 770-860mm Port size: 51mm
Effective passing size: W70*H20mm
Maximum production capacity: 500,000 pcs/hour
Sensitivity(adjustable or not):Yes
Detection sensitivity: Fe: 0.4mm, stainless steel: 0.6mm
Machine weight: 75kg
Removal method: flip culling
Working voltage: 220V/110V, 50/60HZ
■ Main Features
1. Dust-proof conveying ducting and exhaust system prevent product spillage.
2. Easily integrates with tablet presses and dust collectors.
3. Quick maintenance: Components can be assembled and disassembled without tools.
4. Advanced digital signal processing technology detects even tiny metal particles.
5. A buzzer and LED indicator light up when metal contamination is detected.
■ Application
■ Company
■ Customers
■ Exhibitions
■ Package & Shipping
1.Before packaged, the machines will be tested strictly to guarantee the stability and high accuracy.
2.After tested, the machines will be wrapped with plastic sheet and carefully packed in wooden cases.
Packing Detail:
1.Each Machine with plastic film package first, then placed in a wooden case, wooden case with a foam filling.
2.We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers and ship them abroad.
