|| Product Introduction

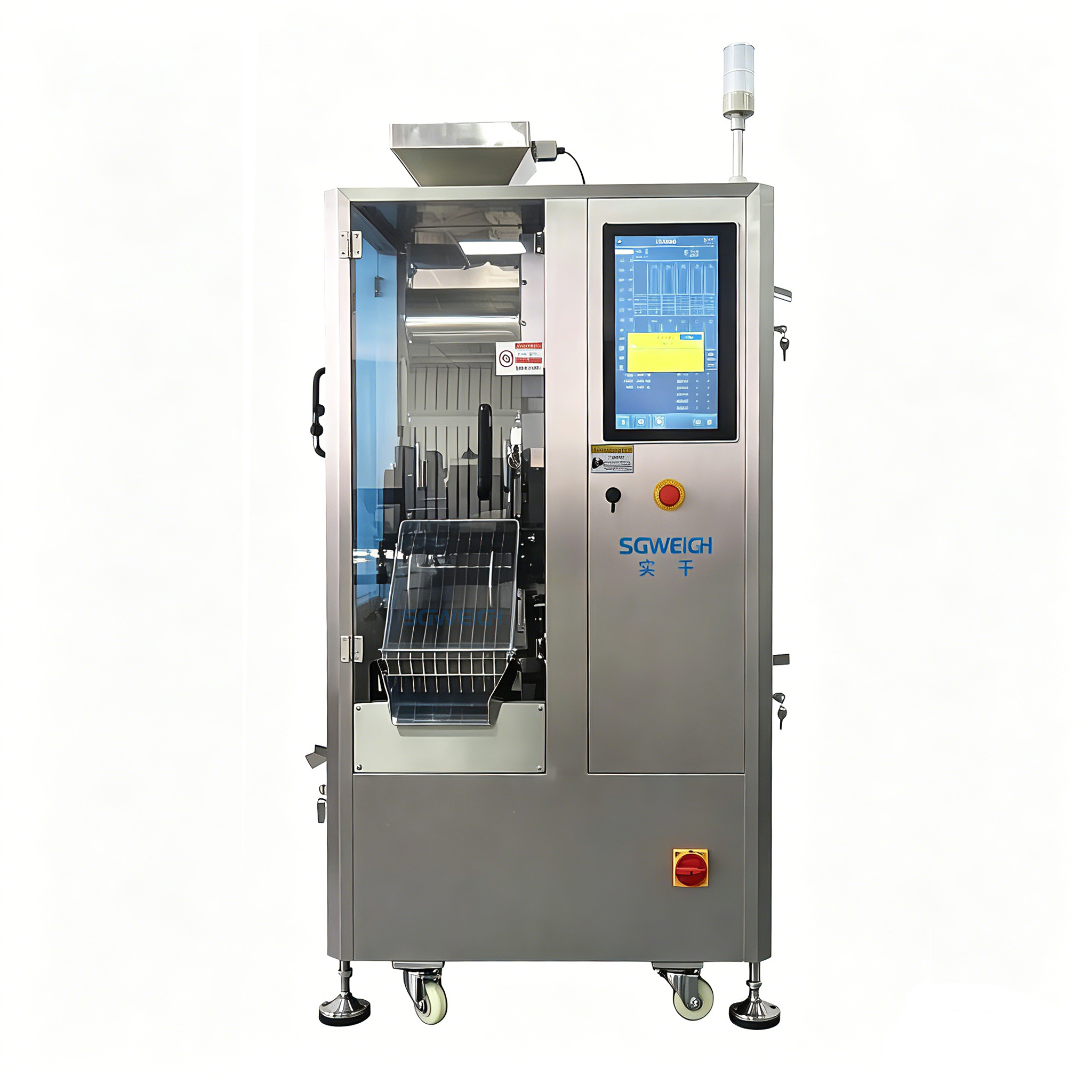

What is a 10 Lane Checkweigher?
A Multi line Checkweigher is an automatic weighing system designed to check the weight of products from ten parallel lanes simultaneously.Checkweigher is commonly used for stick packs, sachets, and small packaged products in high-speed production lines.
|| Tech Specifications
| Model | SG-10X |
| Weighing Range | 1-100g |
| Accuracy | 0.01 gram (depending on the product) |
| Sorting Speed | 40-60pcs/min (one lane) |
| Conveying Speed | 20-100m/min |
| Operation Method | Touch operation |
| Conveying Direction | Can be placed according to the actual situation on site |
| Elimination Method | Lifting Rejection |
| Belt Height From The Ground | 450±50mm (can be customized according to customer requirements) |
| Machine Structure | Stainless steel (SUS304/316) |
| Power Supply | 220V 50-60HZ |
| Power | About400W |
| Windshield | Thick acrylic (to avoid airflow interference) |
|| Main Features
1. Multi-column Synchronous Weighing
Simultaneous inspection of 10 columns of products significantly improves production line inspection efficiency.
2. High-Precision Weighing
High-sensitivity weighing sensors ensure accurate weight measurement for each column of products.
3. Automatic Rejection System
Automatically rejects defective products, preventing them from entering subsequent processes.
4. High-Speed and Stable Operation
Suitable for high-speed packaging lines, such as strip packaging, bagging, and powder products.
5. Multi-Formula Storage
Supports storage of multiple product parameters, allowing for quick switching between different specifications.
6. Intelligent Touchscreen Operation
User-friendly interface, simple and intuitive operation.
7. Data Statistics and Traceability
Real-time recording of weight data supports production quality analysis.
8. Modular Structure Design
Easy to maintain and clean, meeting industry requirements.
9. Abnormal Alarm Function
Automatic alarm for abnormal weight, improving production safety.
|| Application
|| Our Company
|| Our Customers
|| Our Exhibitions
|| Packaging & Delivery
Inner use the plastic wrapping ,out package will use stronger wooden cases.
Our standard package process:
1) Dust & Cleaning
2) Lubricate Drive Parts
3) Divide Machine Into Modules
4) Wrap Modules With Plastic Film
5) Packing Modules into Plywood Cases
6) Mark Shipping Mark In The Cases
If any special requirements, we will pack it as requested.
